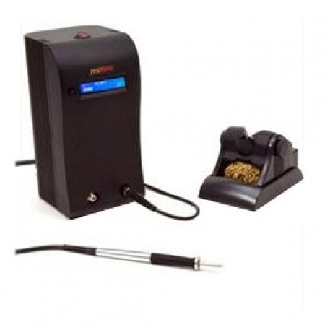

Metcal System, DS, Advanced HP, Work stand & Access*** Replaces the MX-5010 ***

New Dual Port Simultaneous Soldering and Rework System highly effective for soldering
applications including: lead-free, high mass components or boards, thermally sensitive
components requiring low operating temperature, high volume production soldering and
touch-up soldering operations. In addition, the MX-5210 can be used for conduction
rework of SMDs when using SMTC Series soldering cartridges simultaneously.

Features and Benefits:
Can be operated with two hand-pieces dynamically sharing the 80 watts output power based
on demand adding even more application flexibility and speed.
Configured with the Metcal Advanced Soldering and Rework Hand-piece.
Microprocessor controlled power supply providing more power for challenges such as high
mass components, multi-layered boards and lead-free solders.
Improved ergonomics with lightweight hand-pieces.
Greater process control with SmartHeat® Technology.
ESD safe with incoming AC ground monitoring circuitry.
Built-in power indication meter with digital display and bar graph that dynamically provides the
operator with feedback on the status of the soldering operation.
Metcal TipSaver Work stand improves tip life with its Auto-Sleep function.

Product Comprises of:

MX-PS5200 Power supply, 100 to 240 VAC input, dual switch port with LCD Display
MX-H1-AV Metcal Advanced Hand-piece, Soldering and Rework with one cartridge
removal pad
MX-W1AV Work stand for Metcal Advanced™ Hand-piece, Soldering and Rework with
one sponge and one brass pad

NOTE: No tip/cartridge included

MX-5210 Soldering cartridges: STTC Series and SMTC Series


Technical Information

Ambient Operating Temperature: 10- 40°C (50°F - 104°F)

Maximum Enclosure Temperature: 55°C (131°F)

Input Line Voltage: 100- 240 VAC, grounded circuit

Input Line Frequency: 50/60 Hz

Power Consumption: 125 Watts

Output Power Maximum: 80 Watts max. Per channel at 22°C (when operated with two
hand-pieces dynamically, the 80 watts output power is shared based on demand)

Output Frequency: 13.56 MHz

Power Cord 3-Wire: 183cm (18/3") SJT

Dimensions (WxDxH): 12.1cm x 13.0cm x 23.5cm (4.8" x 5.1" x 9.3")

Certification / Marking: cTUVus, CE

Tip-to-Ground Potential: < 2mV

Tip-to-Ground Resistance: < 2 ohms

Idle Temperature Stability: ± 1.1°C (2°F) in still air

Hand-piece Cable Length: L=122cm (48"), burn resistant, ESD safe

Hand-piece Connector: F connector

Work stand Dimensions (WxDxH): 8.6cm x 19.1cm x 8.3cm (3.4" x 7.5" x 3.3")

Weight of the power supply: 7.4 lbs (3.35 kg)

Weight of the * work stand: 1.05 lbs (0.476 kg)
