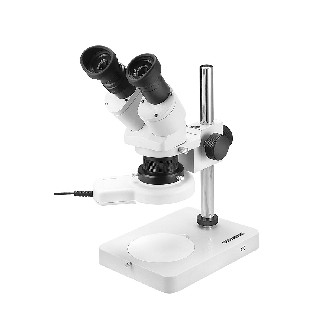

Stereo-microscope with table stand

Stereo microscope with stable metal tripod for incident light illumination.
The column length of 245 mm allows a working distance of 83 mm at 10 x / 20 x magnifications.
The field of view at a magnification of 10 x is 19 mm in diameter.
The LED ring illumination has a bright, shadow-free incident light with a light colour of 5800 K.
The light is illuminated by a LED ring.
The brightness is continuously adjustable between 0 and 15000 lux.
The microscopes are particularly suitable for reliable checks of material- and assembly details as well as the finest work in SMD technology.

Brand: Bernstein
Product Type: Stereo-Microscope
Stereo-Head: 45° Oblique view, 360° rotating pupillary distance adjustable from 54-74 mm
Base Size: 200 x 150 mm
Magnification: 10 x/20 x with attachment lens extensionable up to 40 x
Ocular: Wide field 10 x eyepiece with dioptre adjustment +- 5 dpt, eyepiece cup
Support: Stable metal support, length 245 mm, black-white plastic plate for illumination
Illumination: LED ring light source with light shadow-free illumination, fitted at turret head, life time 20.000 h, with flicker-free LED light (light colour 5800 K), luminosity 0-15.000 lux continuously adjustable (with 80 mm work distance), voltage variable from 100 V-240 V/60/50 Hz, output voltage 18 V/3.6 W
Work Distance: 83 mm at magnification 10 x/20 x
Vision Field: Ø 19 mm 10 x, Ø 9.5 mm 20 x
Includes:Table Stand
