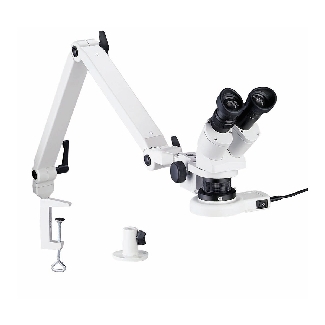

Stereo-microscope with stable hinge arm 850mm length

Stereo microscope with stable metal tripod for incident light illumination.
The field of view at a magnification of 10 x is 19 mm in diameter.
The LED ring illumination has a bright, shadow-free incident light with a light colour of 5800 K.
The light is illuminated by a LED ring
The brightness is continuously adjustable between 0 and 15000 lux..
The microscopes are particularly suitable for reliable inspections of material and assembly details as well as the finest work in SMD technology.
There are 2 options of an additional lens. First, a PREVIEW LENS, if you unscrew this front, the magnification changes from 10x / 20x to 20x / 40x. The additional lens then reduces the working distance
by about half (working distance originally approx. 83 mm). Second, another lens with the factor 0.5. This increases the working distance from 83 mm to 100 mm. If you have any questions, we are happy to
help.

Brand: Bernstein
Product Type: Stereo-Microscope
Stereo-Head: 45° Oblique view, 360° rotating pupillary distance adjustable from 54-74 mm
Magnification: 10 x/20 x with attachment lens extensionable up to 40 x
Ocular: Wide field 10 x eyepiece with dioptre adjustment +- 5 dpt, eyepiece cup
Support: Stable metal support
Illumination: LED ring light source with light shadow-free illumination, fitted at turret head, life time 20.000 h, with flicker-free LED light (light colour 5800 K), luminosity 0-15.000 lux continuously adjustable (with 80 mm work distance), voltage variable from 100 V-240 V/60/50 Hz, output voltage 18 V/3.6 W
Work Distance: 83 mm at magnification 10 x/20 x
Vision Field: Ø 19 mm 10 x, Ø 9.5 mm 20 x
Includes: Articulated Arm
