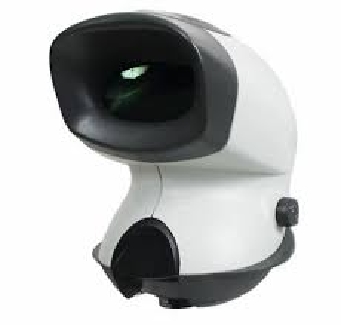

Stereo optical head with UV illumination and expanded exit pupil technology. Requires objective and stand.

Outstanding stereo imaging
Advanced optical design allow your eyes and hands to work together resulting in increased throughput, accuracy and reduced scrap and rework.
2x, 4x, 6x and 8x magnification options provide clear, sharp images with long working distances and large depth of field.
Mantis Compact is a low magnification stereo inspection microscope, providing truly superb 3-D imaging with unparalleled ease and comfort. Featuring Vision Engineering's patented ‘eyepiece less’ optical technology, Mantis Compact is the low magnification stereo viewer of choice for a wide range of inspection, manipulation or rework tasks requiring magnification.
The mantis range of stereo microscopes are used in a very wide range of industries especially when high performance magnification or precision measurement is required.
Ideally suited for highly specialised applications in a wide range of industries, including electronics, medical devices, CSSD, plastic and rubber, aerospace, automotive, telecommunications, defence, packaging, green technology, biomedical, dentistry, hair restoration, watchmaking, jewellery, art & antiquities.
Since its introduction, Vision Engineering's Mantis has become the accepted standard for ergonomics and high performance magnification, with over 150,000 units installed worldwide,
Low powered viewer working with the range of x2, x4, x6 and x8 quick change magnification options
Superior ergonomics for improved productivity and increased throughput
Superb hand-eye co-ordination for inspection and manipulation tasks
Long working distances for easy sample manipulation and rework
True colour, LED illumination
Patented optical technology
Vision Engineering’s patented ‘spatial imaging’ technology removes the need for conventional microscope eyepieces, providing truly amazing stereo imaging, with an ergonomic advantage over conventional ‘eyepiece’ stereo microscopes,
eliminating eye fatigue and allowing the operator greater comfort, leading to improved operator accuracy, greater productivity and increased throughput.

Manufacture: Vision Engineering
Make: Mantis
Model: COMPACT
Type: Mantis COMPACT (UV Version) Head ONLY
Illumination: YES UV
Refer to Data Sheets section for technical information

1 x Stereo optical head with UV illumination and expanded exit pupil technology. Requires objective and stand.

Universal arm for simplicity and flexibility.
Rigid bench stand for added stability with substage illumination options.
Articulated arm for applications requiring extended reach, without compromising stability. Optional secondary link extends reach by 150mm.
Floor stand (with articulated arm) for inspection where subjects are immobile, or require a standing position.
