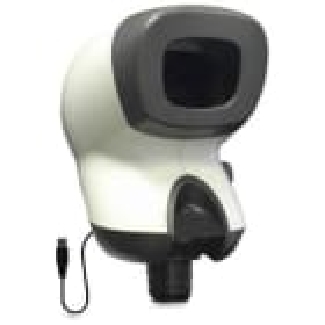

Mantis Elite-Cam HD is a variant of the successful Mantis Elite stereo microscope, with an internally integrated USB2.0 digital camera, bringing image capture capabilities to the outstanding optical performance of Mantis. Requires objective and stand.

Quickly and simply add annotations / mark-up to captured images using the uEye software supplied
Image capture in a variety of formats (.bmp, .jpg and .png)
Video recording (.avi), ideal for training purposes
Multi-lingual software, available in all major languages
Optimise camera settings for individual applications, including white balance, gain, contrast, colour channel gain
A complete integrated solution - one unit to achieve a multitude of low magnification tasks.
Patented optical design allows your eyes and hands to work together resulting in increased throughput, accuracy and reduced scrap and rework.
2x - 20x magnification options with quick change turret allows users to switch between low magnification inspection and high magnification fine detail tasks.
Increased head and body freedom for the operator leads to greater productivity, increased throughput, improved quality control and less fatigue.
From inspection, preparation, rework and manipulation tasks the Mantis Elite-Cam HD provides exceptional hand-eye co-ordination with easy-to-use imaging software.
Optimise camera settings for individual applications, including white balance, gain, contrast, colour channel gain
By adding an HD camera to Mantis Elite, Vision Engineering has created a supremely capable inspection solution, providing flexibility and simplicity for any precision magnification task.
Simple, easy-to-use image and video capture software is included as standard to allow you to get up and running quickly, optimise camera settings for individual applications, or make annotations for documentation purposes.

Refer to Data Sheets section

Universal arm for simplicity and flexibility.
Rigid bench stand for added stability with substage illumination options.
Articulated arm for applications requiring extended reach, without compromising stability. Optional secondary link extends reach by 150mm.
Floor stand (with articulated arm) for inspection where subjects are immobile, or require a standing position.

1 x Stereo optical head with expanded exit pupil technology, rotating lens turret with an internally integrated USB2.0 digital camera
1 x Simple and easy-to-use software - available in all major languages. (uEye software. Image and video capture software. Video recording (.avi), ideal for training purposes)
1 x USB cable, 1 metre
Requires objective and stand.
