Continuous Monitor, 2 Operators, 2 Work Surfaces, 240v PRODUCT: DES19247
Continuous Monitor, 2 Operators, 2 Work Surfaces, 240v
Request a quote
Unit: Each
Arriving Soon: 0
Available Now: 0
Availablity: Delivery Usually 5-7 Days - Contact Us For Updated Pricing and Availablity
NLA
240 volt unit discontinued

The Dual Operator Workstation Continuous Monitor is a real time instrument that ensures that critical ESD control components in a sensitive area are effectively grounded. It independently monitors the operator and the work surface. The instant an operators wrist strap or cord fails, the monitor will issue audible and
visual alarms alerting the user of the problem. In the same manner, the unit also confirms that a path to ground of less than 10 megohms (1 x 107 ohms) exists from the ESD protective work surface(s).
*Dual Station Continuous Monitor for 2 Operators and 2 Work Surfaces
Continuously monitors the integrity of both operators and ESD workstations, eliminating the need for periodic testing and recording. Ideal for adjacent workstations for assembly, test, packaging, or other applications.
*NEW Improved Banana Jack
Creates a more consistent connection and helps to prevent accidental disconnects with operator’s wrist strap.
*Wave Distortion Technology Provides Real-Time Continuous Monitoring for Operator Path to Ground and Presence Of 1 Meg Resistor
True continuous monitoring (versus pulsed or intermittent) of wrist strap functionality and operator safety according to accepted industry standards.

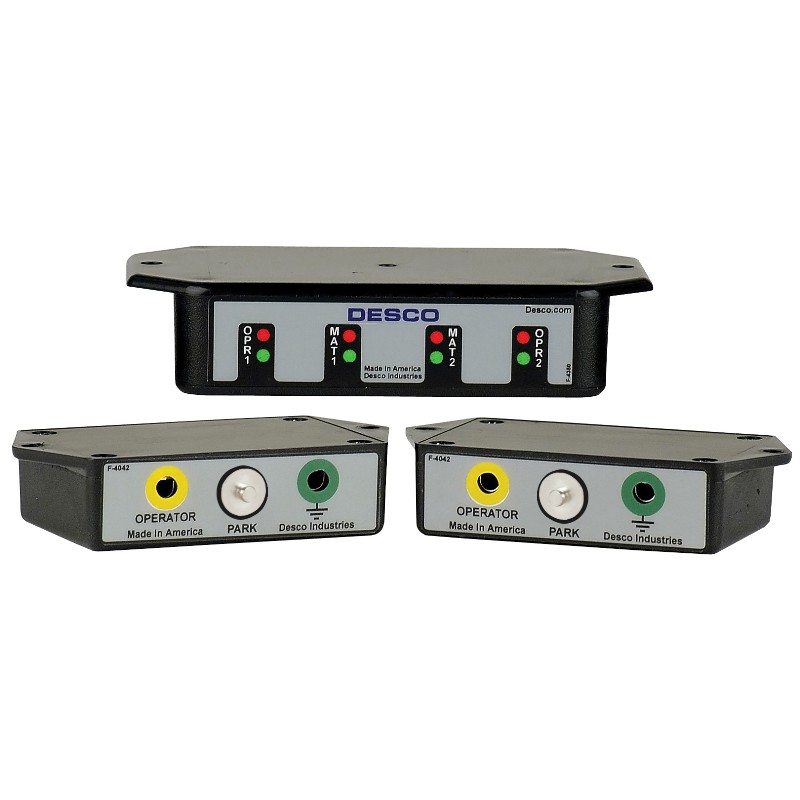

*Ready To Use Unit Includes Control Unit and Two Satellite Remote Monitors
Control unit can be mounted at eye level away for work area so that current status is easily monitored and satellite remotes can be mounted in desired locations up to 7 feet from control unit. Each satellite includes a monitored wrist strap ground, parking snap, and unmonitored ground for guest, cart, equipment
or other grounding applications.
*Park Snap Feature for Each Operator on Satellite Remote
Provides means for operator to disconnect wrist strap cord when normally leaving the workstation without audible (false) alarm sounding.
*Full Time Status LEDs and Audible Alarm for Operator and Workstation Monitoring
Audible and LED visual alarms activate instantly when a failure occurs, alerting user and supervisor of problem, allowing immediate corrective action.
*Miniscule Electrical Current Required to Generate Waveform Monitoring Signal
Safe to use with sensitive components and no reported case of skin irritation.
*Easy to Install Housing with Screws or Adhesive Backed Hook and loop Strips
Optional mounting suitable to most machinery and work area, even in hard to reach locations.
*Calibration Verification
Use the Desco 98221 Wave Distortion Monitor Verification Tester to check the test limits of Wave Distortion Monitors without removing them from their workstations
*Use with Single-Wire Wrist Straps
*NIST Calibrated
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on calibration of Desco products, see Calibration.
*Made in the United States of America
1Dual Operator Continuous Monitor (Control Unit)
2 Satellite Remotes
1 Power Adapter, 24VAC
2 Mat Monitor Cords (Black), 6'
2 Mat Ground Cords (Green and Yellow), 6'
2 Satellite Remote Cables, 7'
4 Push and Clinch Snaps
4 Countersink Washers and Screws (*4 x 1/4")
6 Mounting Screws (*8 x 3/4")
1 Certificate of Calibration
