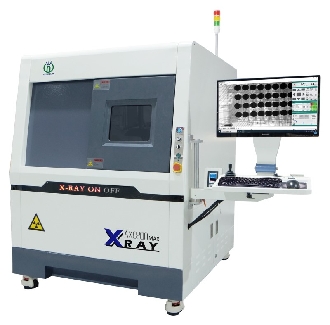

The Unicomp AX-8200 x-ray machine is designed to provide high resolution x-ray imaging primarily for the electronics industry.
This versatile system is effective for many applications within the PCB manufacturing process. This includes BGA, CSP, QFN, Flip Chip, COB and the wide range of SMT components.
The AX-8200 is a powerful support tool for process development, process monitoring and refinement of the rework operation.
Supported by a powerful and easy to use software interface, the AX-8200 addresses both small and large volume factory requirements.

100kV 5µm X-ray Generator
Image enhancer & 2 million digital camera
Multi-function carrier platform & X, Y direction± 60° rotation.
Convenient target point positioning system
BGA Void ratio automatic calculation
Max. detection area 385mm*435mm

Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small
Metal Casting, Electronic Connector Module, Cables,Aerospace Components, Photovoltaic Industry, etc.



Function & Features

1.Large Size Inspection Table Laser Locator for Precise Location

2.24’’ FHD Interactive Touch LCD Display

3.Accurate Control, CNC Programming Automatic Positioning

4.FPD 60° Tilting Inspection

5.Fingerprint Access Management System

6.Real-time Monitoring of Radiation

Footprint 1280(W)×1500(D)×1705(H)mm
Machine Weight 1400 kg
Power Supply AC 110~220V, 50/60Hz
Plywood Packing Size 175(W)×155(D)×200(H)cm
Packing Weight 1500 kg
Power Consumption 1.0 kW
X-Ray Tube
Tube Type Sealed
Max. Power 8W
Voltage 0~90kV (Adjustable)
Focus Spot Size 5µm
Imaging System
Detector Flat Panel Detector (FPD)
Pixel Size 85µm
Effective Detection Area 130*130mm
Frame Rates 20fps
Pixel Matrix 1536*1536
System Magnification 600X
Software
Auto-measuring BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation Convenient Target Point Positioning System
Motion Control System
Movement Control Joystick, Keypad, Mouse &Touch Panel
Max. Loading Area/Weight 610*610mm / 10kg
Max. Inspection Area 550*550mm
Oblique Views Max. 60°
Manipulator 6-axis with X / Y / Z1 / Z2 / T1 / T2
Industrial PC
Monitor 24 inch FHD Interactive Touch LCD Display
System OS Windows 10 64bit
Hard disk 1TB
RAM 8GB
CPU model Intel i7 Processor
Other Features
Door Open Electric Sliding
X-Ray Safety <1µSv/h (Meets All International Standards)
Authority Management Fingerprint Access Magnagement System, and Support Password Accessing.
Safety Operation Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor

Unicomp Datasheet of X-Ray AX8200MAX （2022）
