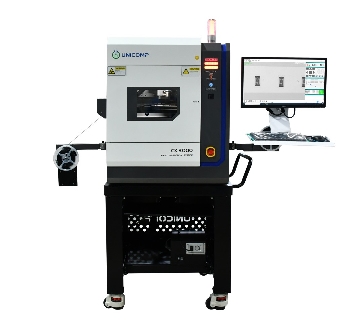

Desktop X-Ray Inspection Machine
This new design desktop X-Ray CX3000 can for both of mode types PCBA inspection (Maximum PCB size 300*300mm) and Reel to Reel checking for components, which can be used for both of SMT
soldering quality inspection plus electronics components detection for incoming quality verification in EMS factory, and mostly electronics components trading companies (supply chain) will need this
machine too.

Super Compack and Desk-top design
Multi-function X-Ray Inspection
Different Inspection Mode
Status Light and Emergency Button
Safety Electromagnetic Interlock
Portable with Wheels

Operation System:
22" high definition LCD
Industrial PC, Win 10, i7 Processor
Unicomp Inspection Software (BGA Inspection & Components Checking, with Reel to Reel)

X-Ray Machine: Dimensions:
700(L)×870(W)×915(H)mm(excl. desk)
Weight: 640 kg (excl. desk)
Power Requirements:110~220VAC(±10%) 50/60Hz(±3Hz)
Power Consuption(Max):1.0KW

X-Ray Tube:
Voltage: 90kV
Max Power: 8W
Focal Spot Size:5µm
Tube Type: Closed

Image Detector:Type:
HD digital flat panel detector
Pixel Size: 85µm
Pixel Matrix: 1536*1536
Effective Area:130mm×130mm

Workstation:
Standard Dimension:300mm×300mm
Detection Area:280mm×280mm

X-Ray Emission: ?1µSv/h
HS Code: 9022199090
Package Date: Wooden case package for one set: W205cmXD155cmxH125cm, Total weight: 740kg (include desk)
