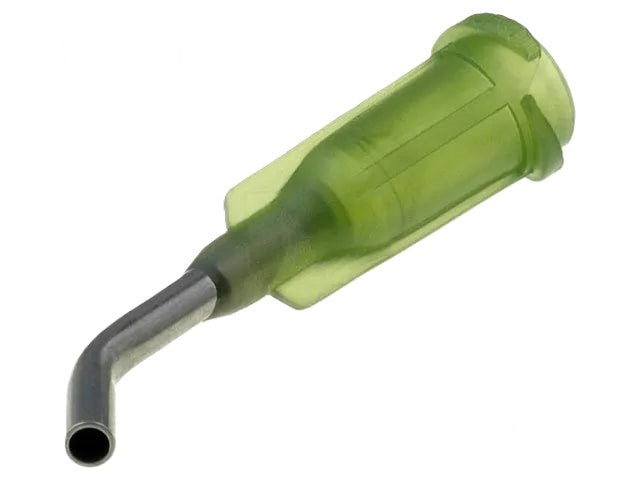

Fisnar 14g 45 Deg Blunt End Tips (25)

Fisnar 14g 45 Deg Blunt End Tips (25)

SKU FIS5601156P25
by Fisnar
$0.00 - $0.00
$0.00
$35.20
$35.20 - $35.20
$35.20
The Fisnar FIS5601156P25 is a stainless-steel 14-gauge blunt-end dispensing tip, featuring a 45° angled bend and a double-helix Luer-Lock polypropylene hub. Designed for use in precision fluid dispensing, these tips provide smooth, accurate control with minimal waste. The cannula is epoxy-sealed into the hub for leak-free operation, making it suitable for both manual and automated dispensing systems. Applications: *Electronics assembly and PCB rework *Controlled dispensing of adhesives, epoxies, silicones, lubricants, solvents, and sealants *Fiber optics and photonics industry applications *Laboratory and cleanroom environments *Hard-to-reach dispensing areas due to 45° angled tip *Suitable for use with automated and manual dispensing systems

Stock available: 2

Features & Benefits

Stainless steel cannula sealed in polypropylene hub14-gauge tip with an inner diameter of 1.6 mm (0.063 in)45° bend for angled access to tight spaces0.5 inch (12.7 mm) cannula lengthPolished, burr-free tip ensures smooth fluid flowLuer-Lock connection for secure, leak-proof fitOlive-colored hub for easy gauge identificationPackaged in blister packs of 25 tipsSuitable for low to medium viscosity fluidsCompatible with a wide range of dispensing systems

Specifications

*Manufacturer: Fisnar*Part Number: 8001156 (FIS-14K45)*Gauge: 14 AWG*Inner Diameter: 1.60 mm (0.063 in)*Cannula Length: 0.5 in (12.7 mm)*Bend Angle: 45 degrees*Mounting Type: Luer-Lock*Tip Style: Blunt-end*Hub Color: Olive (gauge-coded)*Tip Finish: Polished, burr-free*Packaging: 25 tips per pack*Weight per tip: Approx. 0.403 g
