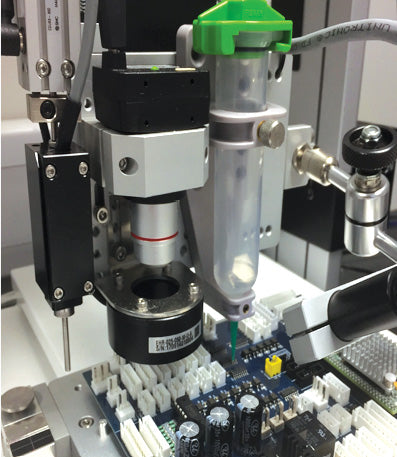

Fisnar CCD Camera Vision System included LED Ring Light & Controller

Fisnar CCD Camera Vision System included LED Ring Light & Controller

SKU FISF4000AKIT-VISION-WIN11
by Fisnar
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Fisnar F4000AKIT-VISION-WIN11 is an advanced CCD camera vision system designed to integrate seamlessly with Fisnar robotic dispensing systems. This kit includes a high-resolution CCD camera, LED ring light, and vision controller, providing precise image recognition and alignment capabilities for automated dispensing applications. Optimized for use with Windows 11, the system enhances accuracy, repeatability, and efficiency in micro-dispensing processes by allowing vision-based fiducial recognition, part alignment, and pattern matching. Applications: *Electronics Assembly: Vision-guided dispensing of adhesives, epoxies, or coatings on PCBs with sub-mm precision. *Medical Device Manufacturing: Ensures accurate placement of bonding agents or sealing compounds in small components. *Aerospace & Automotive: Enables exact fluid application to intricate geometries or hard-to-see locations. *Optics & Photonics: Assists in dispensing onto glass or reflective surfaces where alignment is critical. *Research & Prototyping: Enhances quality control and experimental repeatability in R&D environments. *Small-Part Assembly Automation: Supports detailed image inspection and positioning for robotic micro-assembly.
Features & Benefits

High-Resolution CCD Camera: Captures sharp, detailed images for precision alignment and part inspection.Integrated LED Ring Light: Provides uniform illumination, eliminating shadows and glare for clear imaging.Vision Controller with Windows 11 Support: Offers fast processing and compatibility with modern robotic systems.Pattern Recognition & Fiducial Detection: Enhances dispensing accuracy through intelligent image analysis.Seamless Robot Integration: Designed for plug-and-play compatibility with Fisnar F4000 series and other platforms.Compact and Robust Design: Suitable for industrial environments, with minimal footprint impact.Improved Throughput: Reduces alignment time and increases production speed and repeatability.

Specifications

*Manufacturer: Fisnar*Part Number: F4000AKIT-VISION-WIN11*Camera Type: CCD (Charge-Coupled Device)*Resolution: High-definition (typically 640x480 or higher, depending on specific build)*Illumination: Adjustable LED ring light included*Vision Controller: Pre-configured with Windows 11 OS*Compatibility: Fisnar robotic platforms (e.g., F4000 Series, SCARA, gantry)*Mounting: Standard camera bracket with Z-axis adjustability*Software Features: Pattern matching, fiducial recognition, auto-alignment, image logging*Connectivity: USB, VGA/HDMI (based on controller model)*Power Supply: 110-240V AC (universal input)*Operating System: Windows 11 pre-installed*Country of Origin: USA

More Information

Applications:*Electronics Assembly: Vision-guided dispensing of adhesives, epoxies, or coatings on PCBs with sub-mm precision.*Medical Device Manufacturing: Ensures accurate placement of bonding agents or sealing compounds in small components.*Aerospace & Automotive: Enables exact fluid application to intricate geometries or hard-to-see locations.*Optics & Photonics: Assists in dispensing onto glass or reflective surfaces where alignment is critical.*Research & Prototyping: Enhances quality control and experimental repeatability in R&D environments.*Small-Part Assembly Automation: Supports detailed image inspection and positioning for robotic micro-assembly.
