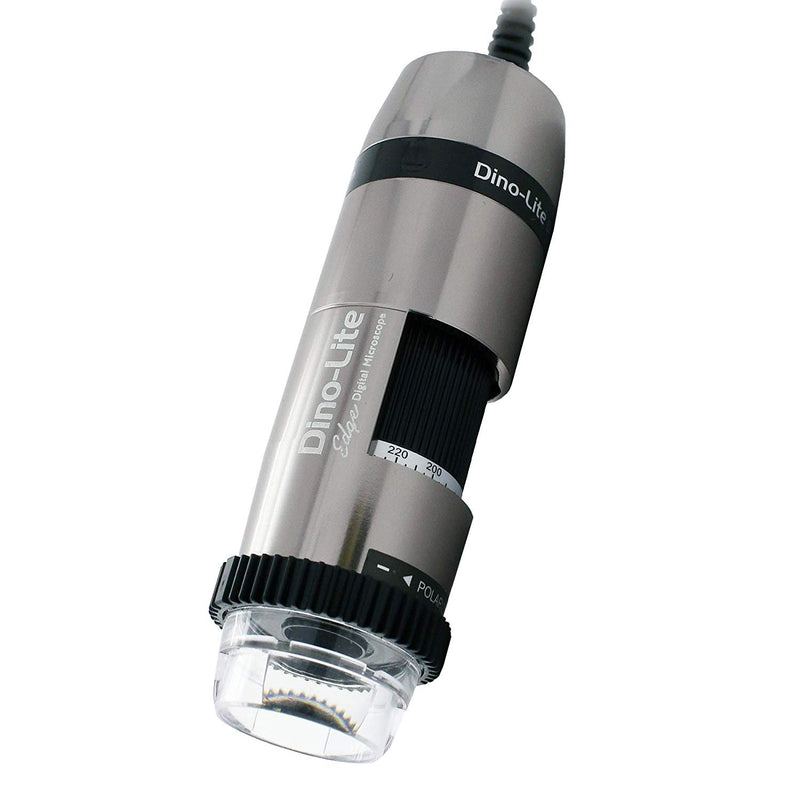

Dino-Lite AF7115MZT 5 MP Camera
Dino-Lite AF7115MZT 5 MP Camera

Dino-Lite AF7115MZT 5 MP Camera

SKU DINAF7115MZT
by DinoLite
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
AF7115MZT AF7115MZT is a 5-megapixel digital microscope offering high-resolution imaging with a 20x ~ 220x magnification. This model has Flexible LED Control (FLC) for maximizing lighting adjustability and a polarizer for reducing unwanted reflections. AF7115MZT is compatible with WF-20, a Wi-Fi streamer.
Features & Benefits

High Optical ResolutionThe superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications. 5.0 MegapixelThe 5-megapixel sensor excels at capturing fine details and can transmit high-quality images at a resolution of 2592 x 1944. Flexible LED Control (FLC)Tasking with software, the FLC provides a six-level intensity adjustment capability for each LED quadrant independently. Adjustable PolarizerThe built-in adjustable polarizer removes unwanted reflection or glare from the object's surface for better contrast. Adaptable InterfaceThe adaptable interface provides the capability of transforming Dino-Lite into a wireless microscope when attaching with WF-20. Robust Metal HousingThe metal housing made of anodized aluminum alloy offers compelling advantages of protection and endurance. The anodized alloy provides extra protection from electromagnetic interference.

Specifications

Model: AF7115MZTSeries: Dino-Lite EdgeInterface: USB 2.0Resolution: 5.0 Megapixel (2592 x 1944)Magnification: 10x ~ 220xWorking Distance: 142.6 ~ 12.1 mmFrame Rate: 10 fps at 5.0 MP/3.0 MP, MJPEG 25 fps at 1.3 MP, MJPEG 30 fps at VGA, MJPEG 10 fps at 1.3 MP, YUY2System Requirements: CPU: 2.9 GHz dual-core Intel Core i5 equivalent or greater RAM: 4 GB or more HD: 150 MB available space or moreOperating System: Windows 7/8/10/11 macOS 10.14 or laterSaving Format; Image:DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNMDinoXcope: PNG, JPEG Video:DinoCapture 2.0: WMV, FLV, SWFDinoXcope: MOVMeasurement Function YesCalibration Function YesMicrotouch YesScroll Lock YesIllumination 8 white LEDsIncluded Front Caps N3C-C (Close Cap)N3C-D (Diffuser Cap)N3C-D2 (Opal Diffuser Cap)N3C-E (Extended Open Cap)N3C-L (Long Cap)N3C-O (Open Cap)N3C-S (Sidelight Cap)Cable Type Detachable Micro B Type-C cableDetachable Micro B Type-A cableCable Length Approx. 1.8 mUnit Dimension 115 mm (H) x 34 mm (D)Unit Weight Approx. 97 gRefer to data Sheet section for more information

Brochure
