KNIPEX CARBIDE TIP CUTTER

KNIPEX CARBIDE TIP CUTTER

SKU KNI7702120H
by Kilews
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

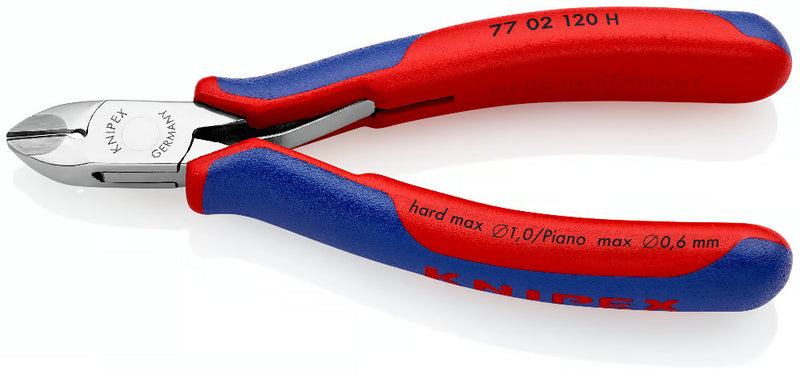

The KNIPEX 77 02 120 H Electronics Diagonal Cutter is engineered for the most demanding cutting tasks involving extremely hard or tough materials. Featuring precision-ground carbide metal cutting edges soldered into forged blanks, this cutter is purpose-built for use in challenging environments such as aerospace, medical technology, and advanced electronics. The carbide edges maintain their sharpness and performance even after prolonged use on materials like piano wire, nickel, tungsten, and diode wire, far outlasting standard cutters. Its robust, backlash-free box joint ensures durability and consistent performance, while the multi-component handles provide ergonomic comfort during intensive use.
Features & Benefits

*Carbide cutting edges (80-83 HRC) for maximum durability and cutting performance.*For toughest materials such as tungsten, piano wire, nickel wire, and diode leads.*Precision-ground carbide inserts soldered into forged blanks for superior wear resistance.*Zero-backlash box joint ensures smooth, durable operation.*Mirror-polished head with oil coating prevents corrosion without the risk of chrome flaking.*Multi-component handles for ergonomic grip and reduced hand fatigue.*Longer service life compared to cutters with conventional steel edges.*Consistent cutting performance due to high resistance to deformation under load.

Specifications

*Manufacturer: KNIPEX*Part Number: 77 02 120 H*EAN: 4003773075783*Tool Type: Electronics Diagonal Cutter with Carbide Cutting Edges*Length: 120 mm*Weight: 85 g*Head Finish: Mirror polished*Handles: Multi-component grips*Joint Type: Box joint*Standards: DIN ISO 9654*REACH Compliant: Does not contain SVHC*RoHS Compliant: Not applicable*Cutting capacities medium hard wire (diameter): Ƙ 1.4 mm*Cutting capacities hard wire (diameter): Ƙ 1.0 mm*Cutting capacities piano wire (diameter): Ƙ 0.6 mm*Cutting capacities soft wire (diameter): Ƙ 2 mm*Jaw length (B): 14 mm*Jaw thickness (joint) (D): 7.5 mm*Head width (A): 11 mm

More Information

Applications:*Electronics manufacturing and repair - Ideal for cutting diode wires and tough conductors.*Aerospace industry - Suitable for high-strength materials used in aircraft electronics.*Medical device production - Effective in processing nickel-titanium and surgical wires.*Telecommunications and defense - Excellent for cutting hard specialty wires.*Precision mechanics and laboratory use - High-accuracy tool for delicate and hard materials.
