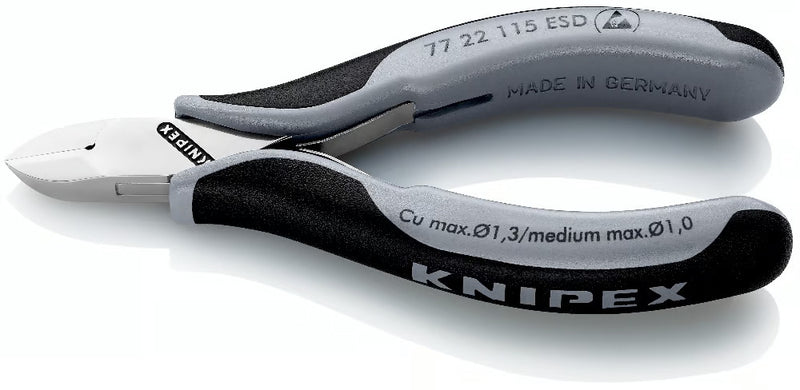

KNIPEX FLUSH DIAG CUTTER ESD

KNIPEX FLUSH DIAG CUTTER ESD

SKU KNI7722115ESD
by Kilews
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The KNIPEX 77 22 115 ESD Electronics Diagonal Cutter is a high-precision tool designed for fine cutting tasks in electro-sensitive environments. It features electrostatically dissipative (ESD-safe) multi-component handles that protect sensitive components from static discharge. The backlash-free box joint ensures stable, controlled cutting, while the laser-hardened cutting edges provide long-term cutting precision. Its mirror-polished head with an oil film coating offers rust protection without the risk of chrome flaking, making it ideal for electronics and cleanroom applications. The round head without bevel allows for flush, burr-free cuts even in tight spaces.
Features & Benefits

*ESD-safe design - dissipative handles protect electronic components*Precision diagonal cutter for fine and sensitive work*Zero-backlash box joint for smooth, consistent cutting performance*Very high transmission ratio for reduced user fatigue*Laser-hardened cutting edges, hardness at least 62 HRC*Mirror-polished head with fine oil film - corrosion-resistant without chrome flaking*Round head without bevel - ideal for flush cuts in confined spaces*Slim sleeves for comfortable handling between thumb and index finger*Low-friction double spring enables effortless tool opening*Long service life and consistent performance through robust design

Specifications

*Manufacturer: KNIPEX*Part Number: 77 22 115 ESD*Tool Type: Electronics Diagonal Cutter (ESD-safe)*Length: 115 mm*Weight: 70 g*Head Finish: Mirror polished*Handles: Multi-component, ESD-safe (dissipative)*Joint Type: Box joint (zero-backlash)*Cutting Edge Hardness: Approx. 62 HRC*Jaw Length (B): 14 mm*Jaw Thickness at Joint (D): 7.5 mm*Head Width (A): 11 mm*Tool Dimensions: 115 x 69 x 16 mm*Standard Compliance:*DIN ISO 9654*DIN EN 61 340-5 (ESD safety)*REACH Compliant: Yes (does not contain SVHC)*RoHS Compliant: Not applicable*Cutting Capacities: *Soft wire: Ƙ 1.0 mm *Medium-hard wire: Ƙ 1.0 mm

More Information

Applications:*Electronics manufacturing and service - Safe for work on PCBs, microchips, and other static-sensitive components.*Precision engineering - Ideal for cutting fine wires in instrument and control equipment.*Telecommunications and cleanroom environments - Suitable for static-sensitive installations and repairs.*Laboratories and aerospace industries - Enables reliable flush cutting of delicate conductors.*Medical device assembly - Clean, chrome-free finish ensures contaminant-free cutting.
