NWS HIGH LEVER COMB PLIERS

NWS HIGH LEVER COMB PLIERS

SKU NWS111-62-205
by Misc
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

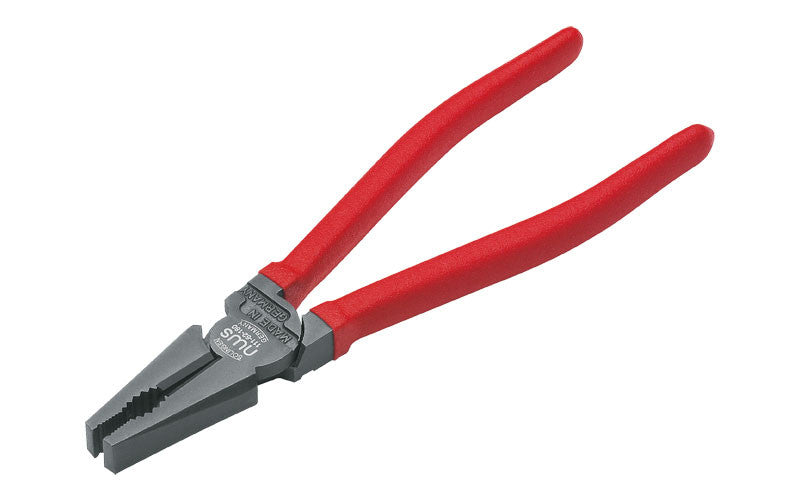

The NWS 111-62-205 High Leverage Combination Pliers (205 mm) is a robust multi-purpose hand tool engineered to provide maximum leverage for gripping, bending, cutting, and holding tasks. It follows the 'American pattern' design and is suited for both soft and hard wires, thanks to inductively hardened cutting edges. The tool is forged from tool steel, oil-hardened, and finished with plastic-coated handles for user comfort. It is designed to reduce user effort via optimized power transmission. Applications: *Holding, gripping, and bending operations on various workpieces. *Cutting both soft wires (copper, aluminium, plastic) and harder wires safely. *Working with cables (stranded conductors) in wiring and electrical tasks. *Use in general maintenance, assembly, repair, and construction settings. *Mechanical tasks where both gripping and cutting functions are needed in one tool. *Situations where the tool also acts as a wrench (ring spanner) or nail holder for extra convenience.
Features & Benefits

*High-leverage linkage geometry ensures efficient power transmission, making cutting and gripping easier.*Inductively hardened cutting edges for durability and long service life under demanding conditions.*Gripping zones on jaws for both flat and round materials, enhancing versatility.*Jaw surfaces include asymmetric inside jaws to better grip irregular workpieces.*Integrated nail & wire holder feature, useful for positioning small workpieces.*Built-in ring spanner cutout adds wrench capability for nuts or bolts up to a certain size.*Ergonomic plastic-coated handles provide comfort and grip during extended use.*Forged, oil-hardened tool steel construction ensures strength, durability, and resistance to wear.

Specifications

*Manufacturer / Brand: NWS*Model / Part Number: 111-62-205*Tool Type: High Leverage Combination Pliers*Length: 205 mm (approx. 8 in)*Material: Tool steel (forged, oil-hardened)*Cutting Edge Hardness: Inductively hardened (approx. 57-59 HRC in similar models)*Cutting Capacities: *Soft wires (copper, aluminium, plastic, 220 N/mm²) up to 5.9 mm *Medium-hard wires (nails, wire nails) up to 3.8 mm *Hard wire (steel rope, 1800 N/mm²) up to 2.5 mm *Cable (multi-stranded Al + Cu conductor) up to 13 mm*Weight: 270 g*Standards / Compliance: DIN ISO 5746 equivalent for combination pliers

More Information

Applications:*Holding, gripping, and bending operations on various workpieces.*Cutting both soft wires (copper, aluminium, plastic) and harder wires safely.*Working with cables (stranded conductors) in wiring and electrical tasks.*Use in general maintenance, assembly, repair, and construction settings.*Mechanical tasks where both gripping and cutting functions are needed in one tool.*Situations where the tool also acts as a wrench (ring spanner) or nail holder for extra convenience.
