Olamef LEAD FORMER TP6/V

Olamef LEAD FORMER TP6/V

SKU OL80-0L23
by Olamef
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

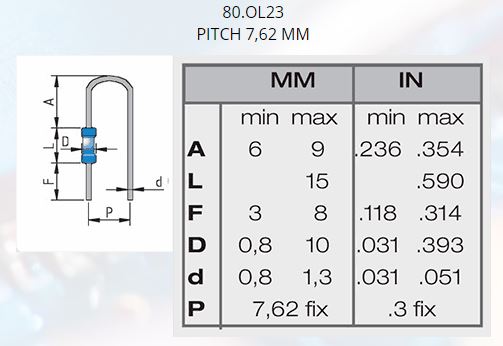

The TP6/V/21 model is designed for cutting and bending taped axial components for vertical mounting. It operates components with lead Ƙ from 0,8 to 1,3 mm. The bending pitch is determined by the bending cam supplied, and can be changed by replacing the cam with one of a different thickness. WARNING: THE LENGTH OF THE LEAD BETWEEN THE BODY AND THE TAPE FOR A PITCH OF 3,8 MM NEEDS TO BE AT LEAST THE LENGTH OF THE BODY PLUS 16 MM PITCHES THAT ARE LONGER THAN THE LEAD REQUESTED NEED TO BE INCREASED IN RELATION.
Features & Benefits

Cut and bend taped axial components for vertical mounting.Handles lead diameters from 0.8 ā€“ 1.3 mm for standard vertical components.Adjustable bending pitch via replaceable bending cams to match different assembly requirements.High precision forming ensures consistent, accurate lead bends.Durable construction for long-term reliability in production environments.Optimizes vertical component placement for PCB assembly.

Specifications

Manufacturer: OlamefPart Number: OL80-0L23Model: TP6/V/21Component Type: Taped axial components for vertical mountingLead Diameter: 0.8 ā€“ 1.3 mmBending Pitch: Adjustable via bending cam (cam thickness change required)Operation: Manual or motorized with optional accessoriesNotes:Minimum lead length between component body and tape for a 3.8 mm pitch must be at least the body length + 16 mm.Longer pitches must be proportionally adjusted to lead length.
