PRESSMASTER COAX RG58/9 (4300-3697)

PRESSMASTER COAX RG58/9 (4300-3697)

SKU PREKCC1113S
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

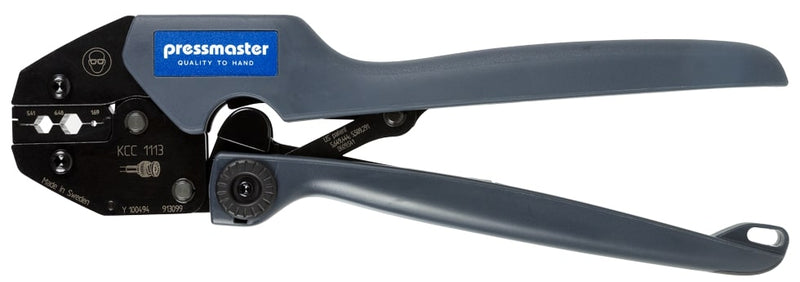

The Pressmaster KCC-1113S is a professional-grade coaxial crimping tool intended for precise crimping of RF connectors like BNC and TNC on coaxial cables like RG58, RG59, RG62, and RG71. Constructed to withstand demanding applications, the tool produces consistent, gas-tight crimps with high reliability and is ideal for telecommunications, electronics, broadcasting, and security system installations. Applications: *Telecommunications: Termination of coaxial cables in communication infrastructure. *Broadcasting: Professional application in TV, radio, and signal transmission systems. *Electronics: Device assembly and repair using RF coaxial interfaces. *Security Systems: Installation and maintenance of CCTV and surveillance systems.
Features & Benefits

*High-Durability Steel Construction: Made from through-hardened alloy steel for longer service life.*Ergonomic Handling: Well-balanced and light for easy, fatigue-free use over extended periods.*Accurate Hex Crimping: Offers precise, repeatable crimps with hexagon-shaped profiles.*Full-Cycle Ratchet Mechanism: Ensures a full crimp cycle before release for consistency.*Adjustable Calibration: Eccentric adjustment allows precise crimping precision fine-tuning.*Integrated Safety Release: Manual ratchet release mechanism for clearing misfeeds and tool jams.*Unique Serial Number: For quality control, maintenance tracking, and traceability.

Specifications

*Manufacturer: Pressmaster*Part Number: 4300-2214 (KCC-1113S)*Country of Origin: Sweden*Crimp Dimensions: 6.48 mm (0.255") 5.41 mm (0.213") 1.69 mm (0.067")*Tool Dimensions: Length: 204 mm (8.03") Width: 22 mm (0.87") Height: 76 mm (2.99") Weight: 500 g (1.1 lb)*Crimp Profile: Hexagonal*Connector Types: BNC, TNC, and other standard coaxial connectors*Cable Compatibility: RG58C/U, RG59B/U, RG62A/U, RG62B/U, RG71B/U, RG108A/U, RG142B/U, RG210/U, RG223/U, RG302/U*Service Life: Up to 50,000 crimp cycles

More Information

Applications:*Telecommunications: Termination of coaxial cables in communication infrastructure.*Broadcasting: Professional application in TV, radio, and signal transmission systems.*Electronics: Device assembly and repair using RF coaxial interfaces.*Security Systems: Installation and maintenance of CCTV and surveillance systems.
