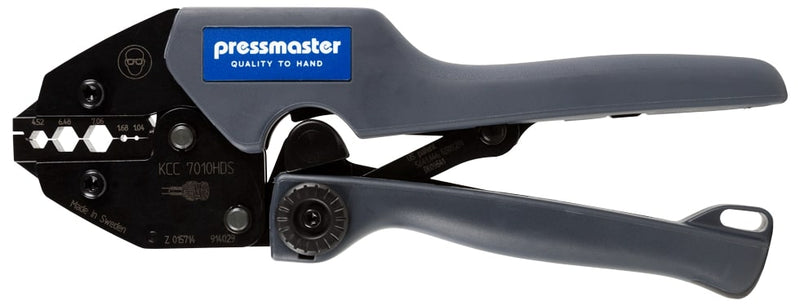

Pressmaster Coaxial Hex 7.07/6.48/4.52/1.68/1.04 mm (4300-4165)

Pressmaster Coaxial Hex 7.07/6.48/4.52/1.68/1.04 mm (4300-4165)

SKU PREKCC7010HDS
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Pressmaster KCC-7010HDS is a professional-level coaxial crimping tool designed for precision HEX crimping of connectors like HDTV, BNC, and TNC on common coaxial cables like Belden 1855A, 1865A, 1505A, 1505F, 1694A, and 1694F. Featuring five hex crimp cavities from 7.07 mm to 1.04 mm, this handy tool is perfect for technicians and installers who need consistent, high-quality terminations in broadcasting, telecommunications, and RF systems. Built with durable high-strength alloy steel and loaded with ergonomic design features, the KCC-7010HDS offers excellent durability, low hand force operation, and excellent crimp accuracy on a variety of cable types. Applications: *Broadcasting and Media: For HDTV, BNC, and TNC connector installation in professional audio-video systems. *Telecommunications: Suitable for application in RF signal transmission systems and cabling installations that are structured. *CATV Systems: Applicable for stable connector termination in cable TV distribution networks. *Field Installations and Maintenance: Most favored by technicians for field-use and portable because of its rugged construction and ease of handling. *Data & Networking: Provides strong signal and data integrity for communication lines based on coaxial.
Features & Benefits

*Multi-Size HEX Crimp Cavities: Five crimp sizes (7.07, 6.48, 4.52, 1.68, and 1.04 mm) service a broad spectrum of coaxial connectors and cables.*Robust Alloy Steel Construction: Constructed with through-hardened alloy steel for long tool life and consistent performance.*Ergonomic and Customizable: Designed for both left- and right-handed users, with comfortable grip and customizable operation.*Reduced Hand Force Mechanism: Innovative mechanism significantly lowers the effort needed to complete a crimp compared to other tools.*Full-Cycle Ratchet System: Ensures every crimp is fully completed for a consistent, reliable connection.*Ratchet Release Function: Allows the user to safely clear incomplete crimps or misfeeds.*Eccentric Adjustment: Precision tuning maintains long-term crimp quality and enables calibration.*Work Surface Stability: Non-slip handle pad gives leverage stability during crimping.*Traceability: Every tool has a serial number for quality tracing.*Safety Strap Ready: Holes for the attachment of a lanyard or safety strap in field use.

Specifications

*Manufacturer: Pressmaster*Part Number: KCC-7010HDS (4300-4165)*Length: 204 mm / 8.03"*Width: 22 mm / 0.87"*Height: 76 mm / 2.99"*Weight: 500 g / 1.1 lb*Crimp Dimensions (mm): 7.07, 6.48, 4.52, 1.68, 1.04*Crimp Size (inch):.278,.255,.178,.066,.041*Connector Type: Coaxial and CATV connectors*Description: HDTV, BNC, and TNC connector compatible with Belden 1855A, 1865A, 1505A, 1505F, 1694A, and 1694F*Cable Compatibility: 1695, RG108A/U, RG122/U, RG142B/U, RG180B/U, RG210/U, RG279/U, RG303/U, RG59B/U, RG62A/U, RG62B/U, RG71B/U*Cycle Life: Up to 50,000 crimps*Crimping Action: Manual with full-cycle ratcheting mechanism

More Information

Applications:*Broadcasting and Media: For HDTV, BNC, and TNC connector installation in professional audio-video systems.*Telecommunications: Suitable for application in RF signal transmission systems and cabling installations that are structured.*CATV Systems: Applicable for stable connector termination in cable TV distribution networks.*Field Installations and Maintenance: Most favored by technicians for field-use and portable because of its rugged construction and ease of handling.*Data & Networking: Provides strong signal and data integrity for communication lines based on coaxial.
