Pressmaster Coaxial RG 6,6 Quad, 1695A & Twinax, 9.14/8.23/1.73 mm hex (4300-3088)

Pressmaster Coaxial RG 6,6 Quad, 1695A & Twinax, 9.14/8.23/1.73 mm hex (4300-3088)

SKU PRECCC9117
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

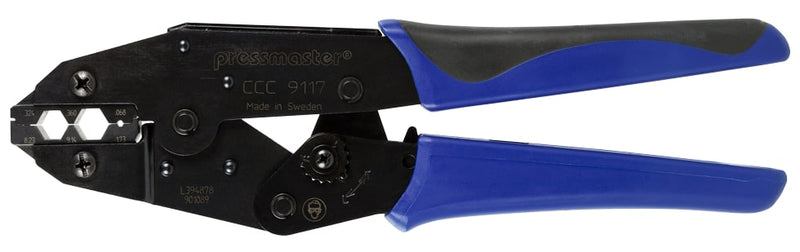

The Pressmaster CCC9117 is a precision crimp tool used for CATV connectors, such as Twinax, RG 6, RG 6 Quad, 1695, and other coaxial cables. Supporting HEX crimp for connector sizes 8.23 mm, 9.14 mm, and 1.73 mm, the tool provides assurance of secure and dependable crimp connections across a range of coaxial cable applications, such as CATV systems. It has a full cycle crimp mechanism, ratchet release, and precision eccentric adjustment to ensure consistent crimping quality and tool performance throughout its life. Applications: *Telecommunications: Well-suited to crimp CATV connectors, such as F connectors, for secure transmission of signals. *Networking: Ideal application in network cable assemblies, particularly with coaxial cable types such as RG 6, RG 6 Quad, and Twinax. *Broadcasting: Needed to ensure secure, high-performance coaxial contacts utilized in broadcast applications. *Aerospace and Military: Ideal for high-precision, demanding aerospace and military system applications that involve rugged crimping tools. *General Electronics: Versatile for use in a wide range of electronic projects involving coaxial cables and CATV connectors.
Features & Benefits

*High-Strength Construction: Constructed of through-hardened alloy steel for maximum durability and long-term performance.*Ergonomic Design: Tool is customizable for right- and left-handed operators to ensure maximum comfort while in use.*Full Cycle Crimp Mechanism: Provides consistent, dependable crimping for maximum connector performance.*Ratchet Release Mechanism: Facilitates clearing miscrimps and obstructions without causing tool damage.*Precision Eccentric Adjustment: Maintains consistent performance and provision to calibrate the tool when required.*Traceability: Each tool is shipped with a distinctive serial number for quality control and traceability.*Long Life Span: Up to 50,000 crimp cycles rated, ensuring high reliability in harsh environments.

Specifications

*Manufacturer: Pressmaster*Part Number: CCC9117 (4300-3088)*Tool Type: Coaxial Crimping Tool for CATV connectors*Crimp Dimensions (mm/mm²): 8.23 mm / 9.14 mm / 1.73 mm*Crimp Dimensions (inch/AWG): .324 / .360 / .068*Connector Type: CATV connectors, Twinax, F connectors*Cables: 1695, RG 6, RG143A/U, RG212/U, RG222/U, RG6 Quad, RG6A/U, TWINAX*Length: 230 mm (9.06")*Width: 21 mm (0.83")*Height: 70 mm (2.76")*Weight: 540 gr (1.19 lb)*Life Span (Cycles): 50,000

More Information

Applications:*Telecommunications: Well-suited to crimp CATV connectors, such as F connectors, for secure transmission of signals.*Networking: Ideal application in network cable assemblies, particularly with coaxial cable types such as RG 6, RG 6 Quad, and Twinax.*Broadcasting: Needed to ensure secure, high-performance coaxial contacts utilized in broadcast applications.*Aerospace and Military: Ideal for high-precision, demanding aerospace and military system applications that involve rugged crimping tools.*General Electronics: Versatile for use in a wide range of electronic projects involving coaxial cables and CATV connectors.
