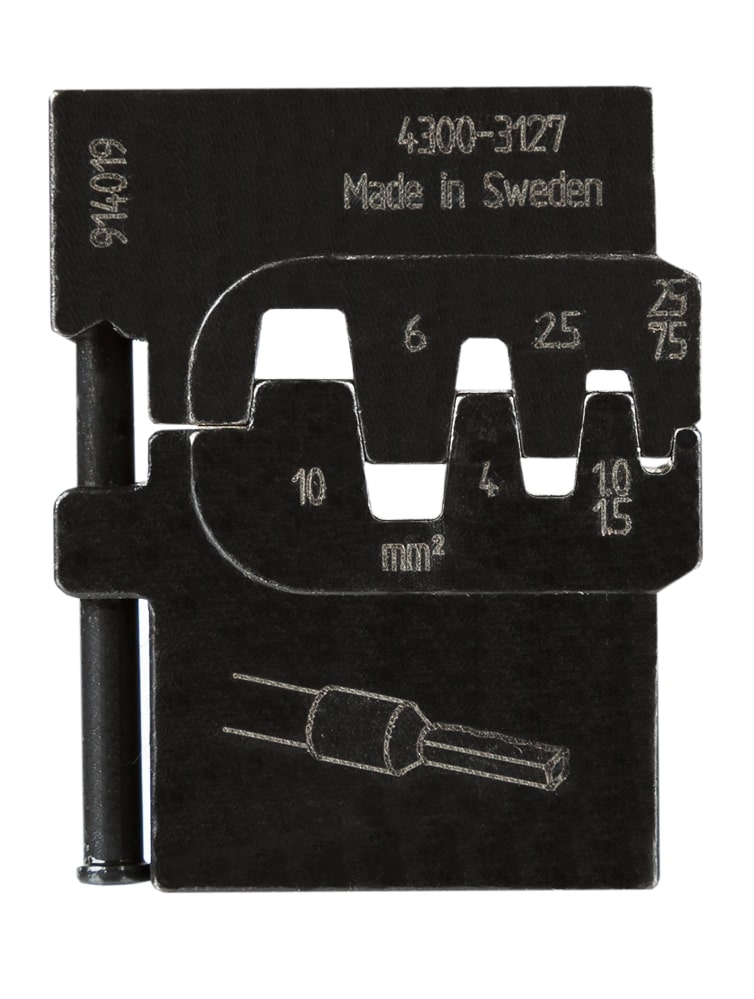

Pressmaster Crimp Die Bootlace 0.2-10mm for uninsulated end sleeves (ferrules) ranging from 0.25 up

Pressmaster Crimp Die Bootlace 0.2-10mm for uninsulated end sleeves (ferrules) ranging from 0.25 up

SKU PRE4300-3127
by Pressmaster
$0.00 - $0.00
$0.00
$45.00
$45.00 - $45.00
$45.00
The Pressmaster 4300-3127/AAA is an engineered crimp die set developed for use within the Pressmaster MCT frame. It's designed to be used for the crimping of insulated as well as uninsulated end sleeves (ferrules) ranging from 0.25 up to 10 mm² wire size (AWG 24-8). Being a member of Pressmaster's modular system of dies, this die set provides increased convenience in cable terminating work in assorted industrial and electric applications. Applications: The 4300-3127/AAA crimp die set is best suited for: *Crimping end sleeves (ferrules) on conductors from 0.25 to 10 mm² (AWG 24-8) *Electrical control cabinet and panel assembly *Industrial wiring harness assembly *Portable and rugged crimping tools needed for on-site service and field maintenance work

Stock available: 1

Features & Benefits

Accurate Crimping Performance: Consistent and accurate crimps through a parallel action stroke mechanism.Ergonomic Design: Smooth plastic grip in an ergonomic tool frame for comfortable handling, even in the outdoors.Simple Die Exchange: Easy and tool-free die exchange with an easy-to-reach release mechanism.Compactness: Small and light-weight design makes it perfect for use in the field and service jobs.Safety Option: Features a hole in the handle for the optional attachment of a safety strap.Durability: Designed to last up to 20,000 crimp cycles.

Specifications

*Manufacturer: Pressmaster*Part Number: 4300-3127/AAA*Country of Origin: Sweden*Length: 31 mm / 1.22"*Width: 12 mm / 0.47"*Height: 39 mm / 1.54"*Weight: 86 g / 0.19 lb*Wire Size Range: 0.25-10 mm² / AWG 24-8*Crimp Dimensions (mm²): 0.25-0.75 / 1.0-1.5 / 2.5 / 4 / 6 / 10*Crimp Dimensions (AWG): 24-20 / 18-16 / 14 / 12 / 10 / 8*Connector Type: End sleeves (ferrules), uninsulated and insulated, insulated and uninsulated*Lifespan: 20,000 crimp cycles*Compatibility: Compatible with the use in the Pressmaster MCT frame
