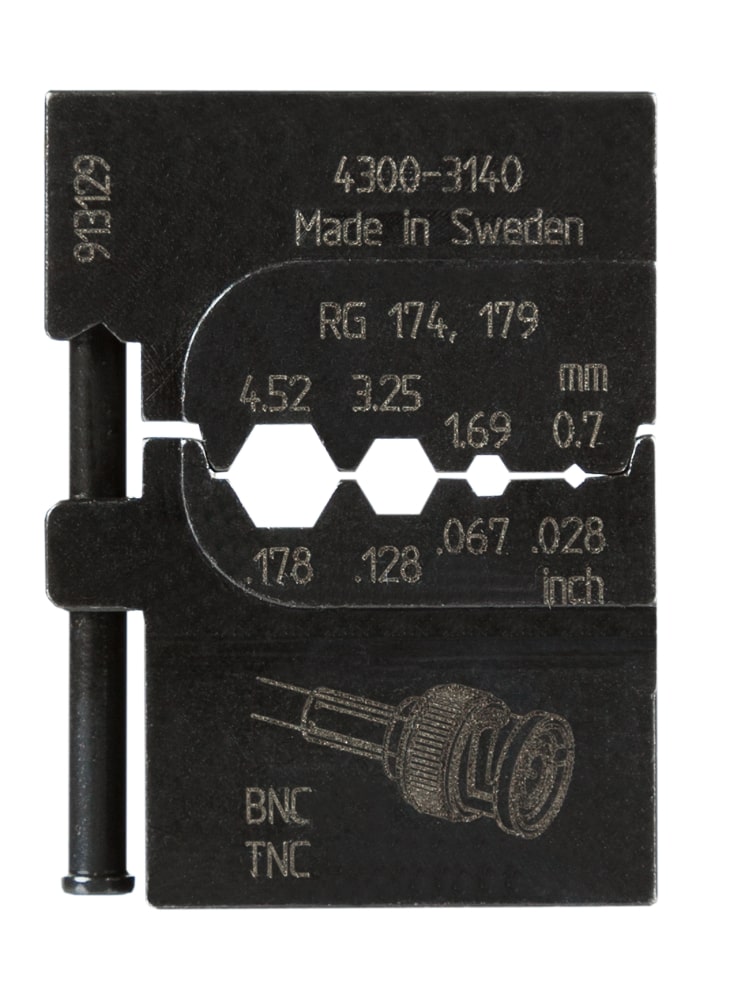

PRESSMASTER CRIMP DIE for coaxial connectors like BNC and TNC

PRESSMASTER CRIMP DIE for coaxial connectors like BNC and TNC

SKU PRE4300-3140
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Pressmaster 4300-3140/AAA is a high-accuracy crimp die set intended to be used in the Pressmaster MCT frame. It is precisely designed to crimp coaxial connectors like BNC and TNC, working with RG 174 and RG 179 cables. This die set comes under Pressmaster's modular setup so that dies may be changed around to accommodate different types of connectors, providing added versatility and effectiveness in cable assembly operations.
Features & Benefits

*Consistent Crimping Performance: Provides precise and consistent crimps via a parallel action stroke mechanism.*Ergonomic Design: The frame of the tool is ergonomically shaped with smooth plastic overcovering for easy handling, even in the field.*Simple Die Change: Equipped with a simple-release function to allow easy and tool-free die change.*Portability: Compact and light, making it suitable for use in the field.*Safety Feature: Fitted with a hole on the handle where a safety strap can be attached.*Durability: Constructed to survive as many as 20,000 crimp cycles.

Specifications

*Manufacturer: Pressmaster*Part Number: 4300-3140/AAA*Country of Origin: Sweden*Length: 29 mm / 1.14"*Width: 10 mm / 0.39"*Height: 39 mm / 1.54"*Weight: 73 g / 0.16 lb*Crimp Dimensions (mm / mm²): 0.7 mm² 1.69 mm HEX 3.25 mm HEX 4.52 mm HEX*Crimp Dimensions (inches / AWG): 0.028'' 0.067'' 0.128'' 0.178''*Connector Type: Coaxial connector (e.g., BNC, TNC)*Cable Compatibility: RG 122/U, RG 174A/U, RG 179B/U, RG 180B/U, RG 187A/U, RG 188A/U, RG 279/U, RG 303/U, RG 316/U*Description: Crimping of BNC and TNC connectors onto RG 174, RG 179 coaxial cables.*Lifespan: 20,000 crimp cycles

More Information

The 4300-3140/AAA die set is well-suited for:*Crimping BNC and TNC connectors onto RG 174 and RG 179 coaxial cables.*Application in telecommunications, broadcasting, and networking installations.*Field applications that require rugged and portable crimping tools.
