PRESSMASTER CRIMP DIE for fiber optic connectors

PRESSMASTER CRIMP DIE for fiber optic connectors

SKU PRE4300-3141
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

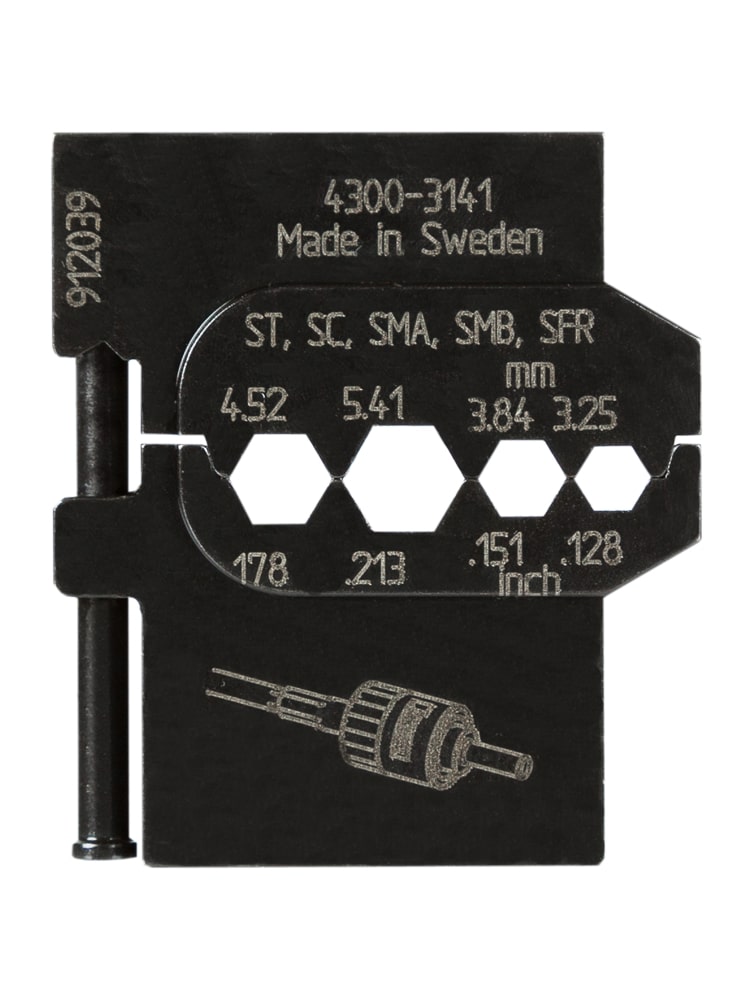

The Pressmaster 4300-3141 is a precision-crafted crimp die set that can be used with the MCT (Mobile Crimp Tool) frame. It is specifically designed for crimping numerous fiber optic connectors, providing professionals with high flexibility and performance in field service, telecommunications, and networking applications. With interchangeable use and lightweight construction, it offers a convenient and reliable solution for precise crimping in compact or mobile environments.
Features & Benefits

*Compatible with Multiple Connectors: Built for fiber optic connectors such as ST, SC, SMA, SMB, and SFR.*Hexagonal Crimp Profile: Offers consistent, secure crimps.*Quick Die Change: Exchangable quickly with the MCT tool frame with no special tools required.*High Durability: Capable of up to 20,000 crimping cycles.*Compact and Lightweight: Perfect for field use and mobile technicians.*Reusable Storage Box: Packaged in a modular box for easy storage and transportation.

Specifications

*Manufacturer: Pressmaster*Part Number: 4300-3141*Tool Compatibility: MCT (Mobile Crimp Tool)*Crimp Profile: Hex*Connector Type: Fiberoptic*Description: For use with ST, SC, SMA, SMB, and SFR connectors*Crimp Dimensions (mm/mm²): 3.25 mm HEX / 3.84 mm HEX / 4.52 mm HEX / 5.41 mm HEX*Crimp Dimensions (inch/AWG): 0.128" / 0.151" / 0.178" / 0.213"*Length: 34 mm (1.34")*Width: 10 mm (0.39")*Height: 39 mm (1.54")*Weight: 76 grams (0.17 lbs)*Life Span: Up to 20,000 cycles*Country of Origin: Sweden

More Information

*Telecommunications: For crimping fiber optic connectors in data transmission systems.*Networking: Utilized in network installations that need fiber connectivity.*Broadcast and AV: For high-reliability signal transfer in audio-visual systems.*Industrial Automation: Facilitates fiber optic integration in industrial communication networks.*Field Service and Maintenance: Suitable for technicians who need portable, high-performance crimp tools.
