PRESSMASTER CRIMP TOOL (4300-3703)

PRESSMASTER CRIMP TOOL (4300-3703)

SKU PREKKB1025
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

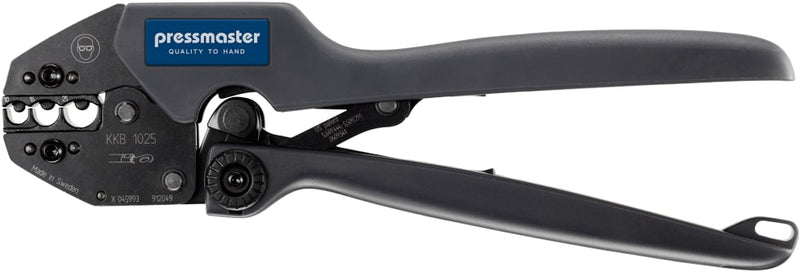

The Pressmaster KKB 1025 is a precision crimping tool for non-insulated connectors, supporting wire sizes between 10 mm² and 25 mm² (AWG 8 to 4). It has an indent-crimp profile and meets DIN 46234 standards. The KKB 1025 is made of through-hardened alloy steel for strength and reliability, making it suitable for professional electrical and industrial use. Applications: The KKB 1025 crimping tool is best suited for: *Crimping insulated connectors between 10 and 25 mm² (AWG 8-4) *Electrical panel assembly and service *Industrial wiring harness production *Field service and maintenance work involving consistent crimping of insulated connectors
Features & Benefits

*High-Strength Construction: Constructed from through-hardened alloy steel for added durability.*Ergonomic Design: Ergonomic design for use by both right- and left-handed individuals.*Full-Cycle Crimp Mechanism: Complete crimp cycle for consistent, repeatable crimps.*Ratchet Release Mechanism: Provides for clearing of miscrimps and blockages.*Precision Eccentric Adjustment: Consistent performance and calibration feature.*Non-Slip Pad: Prevents slippage when prying on a work surface.*Traceability: Unique serial number on every tool for quality control traceability.*Safety Strap Attachment: Handle has hole for fitting a safety strap.

Specifications

*Manufacturer: Pressmaster*Part Number: KKB 1025 (4300-3703)*Country of Origin: Sweden*Length: 256 mm / 10.08"*Width: 22 mm / 0.87"*Height: 80 mm / 3.15"*Weight: 550 g / 1.21 lb*Wire Size Range: 10-25 mm² / AWG 8-4*Crimp Dimensions (mm²): 10 mm²; 16 mm²; 25 mm²*Crimp Dimensions (AWG): AWG 8; AWG 6; AWG 4*Connector Type: Non-insulated connectors*Crimp Profile: Indent-Crimp*Compliance: DIN 46234*Lifespan: 50,000 crimp cycles

More Information

Applications:The KKB 1025 crimping tool is best suited for:*Crimping insulated connectors between 10 and 25 mm² (AWG 8-4)*Electrical panel assembly and service*Industrial wiring harness production*Field service and maintenance work involving consistent crimping of insulated connectors
