PRESSMASTER CRIMP TOOL

PRESSMASTER CRIMP TOOL

SKU PREMSA0110
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

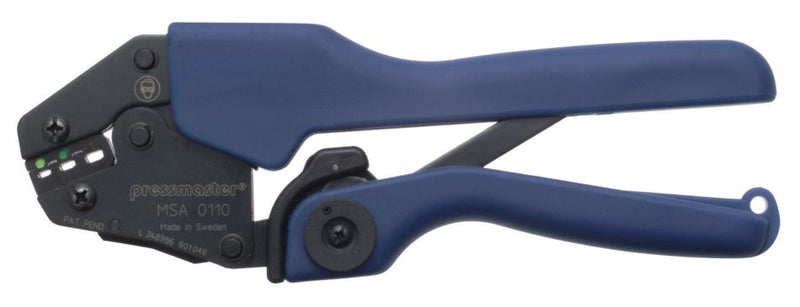

The Pressmaster MSA-0110 is a highly engineered ratchet crimping tool for making consistent and predictable crimp connections on pre-insulated terminals. It can be used for wire sizes between 26 and 16 AWG and accommodates transparent, green, and red color-coded terminal. The tool has ergonomic handles for easy two-handed use, a ratchet mechanism to give a full crimp cycle, and a safety release mechanism. Factory-adjusted using an eccentric cam, the MSA-0110 ensures peak performance over a minimum of 50,000 cycles. Applications: The MSA-0110 crimp tool is suited for: *Electrical panel assembly and servicing *Automotive wiring harness assembly *Industrial equipment wiring *Field service and repair work involving trustworthy crimping of pre-insulated terminals
Features & Benefits

*Ergonomic Design: Two-handed handles for comfortable operation to minimize user fatigue.*Ratchet Mechanism: Provisions for a complete crimp cycle prior to release, ensuring uniform crimps.*Safety Release: Provides for release of the tool mid-cycle, if required, to avoid connector or wire damage.*Durability: Designed for a minimum of 50,000 crimp cycles to provide long-term reliability.*Factory Calibration: Fitted with a accurate eccentric cam adjustment for reliable performance.*Inspection Capability: Dies stamp terminal during crimping, allowing post-crimp inspection for quality control.

Specifications

*Manufacturer: Pressmaster*Part Number: MSA-0110 (4300-2205)*Country of Origin: Sweden*Length: 212 mm / 8.35"*Height: 72 mm / 2.83"*Weight: 470 g / 1.04 lbs*Connector Type: Pre-insulated terminals (Transparent / Green / Red)*Wire Size Range: 26-16 AWG*Crimp Profile: Oval-Crimp symmetric*Lifespan: Minimum of 50,000 cycles

More Information

Applications:The MSA-0110 crimp tool is suited for:*Electrical panel assembly and servicing*Automotive wiring harness assembly*Industrial equipment wiring*Field service and repair work involving trustworthy crimping of pre-insulated terminals
