PRESSMASTER DIE SET 10-8 AWG

PRESSMASTER DIE SET 10-8 AWG

SKU PRE4300-3148
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

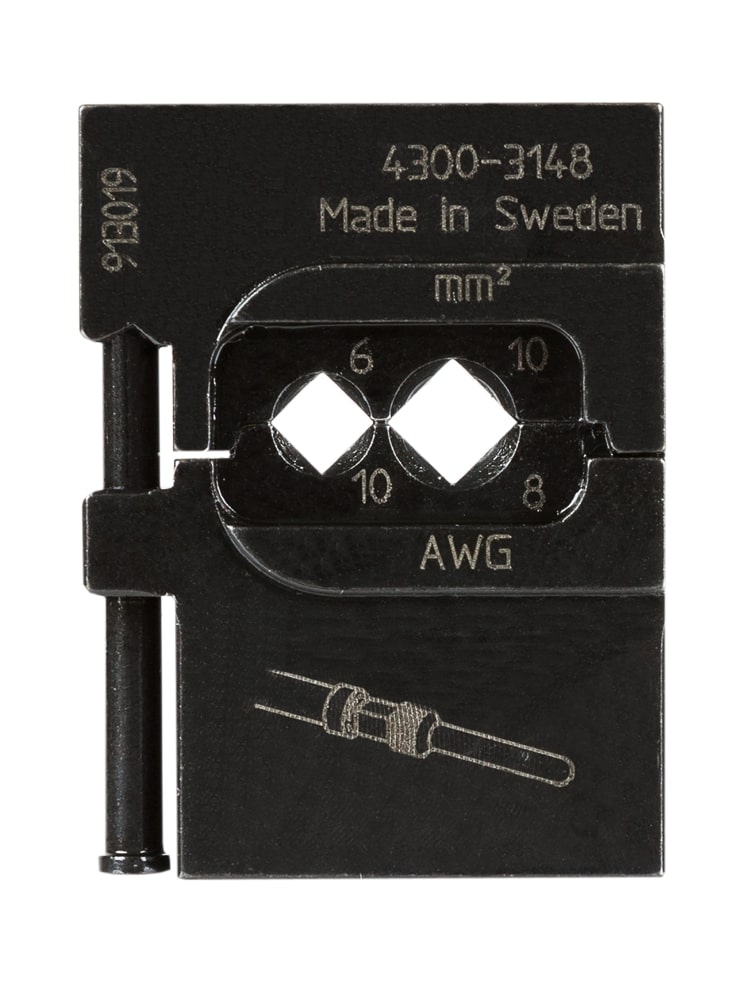

The Pressmaster 4300-3148 Die Set is an interchangeable precision die engineered to be used with the Pressmaster MCT (Mobile Crimp Tool) frame. It is specifically designed for crimping turned pin connectors and accommodates wire sizes ranging from 6 mm² to 10 mm² (AWG 10-8). Its robust construction and high-performance engineering guarantee repeatable, reliable crimps in harsh electrical and industrial applications.
Features & Benefits

*High-Strength Construction for durability and long-lasting performance.*Precision Crimping specifically designed for turned pin connectors.*Interchangeable Die Design allows for rapid, tool-free die changes with the Pressmaster MCT frame.*Compact and Lightweight for easy use in field or bench applications.*Extended Life Span rated for up to 20,000 crimp cycles.

Specifications

*Manufacturer: Pressmaster*Part Number: 4300-3148*Country of Origin: Sweden*Compatible Tool: Pressmaster MCT Frame*Wire Size Range: 6-10 mm² / AWG 10-8*Connector Type: Turned pin connectors*Crimp Dimensions: 6 mm² / AWG 10 10 mm² / AWG 8*Dimensions: Length: 29 mm / 1.14" Width: 10 mm / 0.39" Height: 39 mm / 1.54" Weight: 66 g / 0.15 lb*Lifespan: 20,000 crimp cycles

More Information

*Crimping turned pin connectors in electrical and electronic assemblies*Construction of industrial wiring harnesses*Maintenance and repair work involving medium-gauge wire terminations*Field service work requiring portable, flexible crimping solutions
