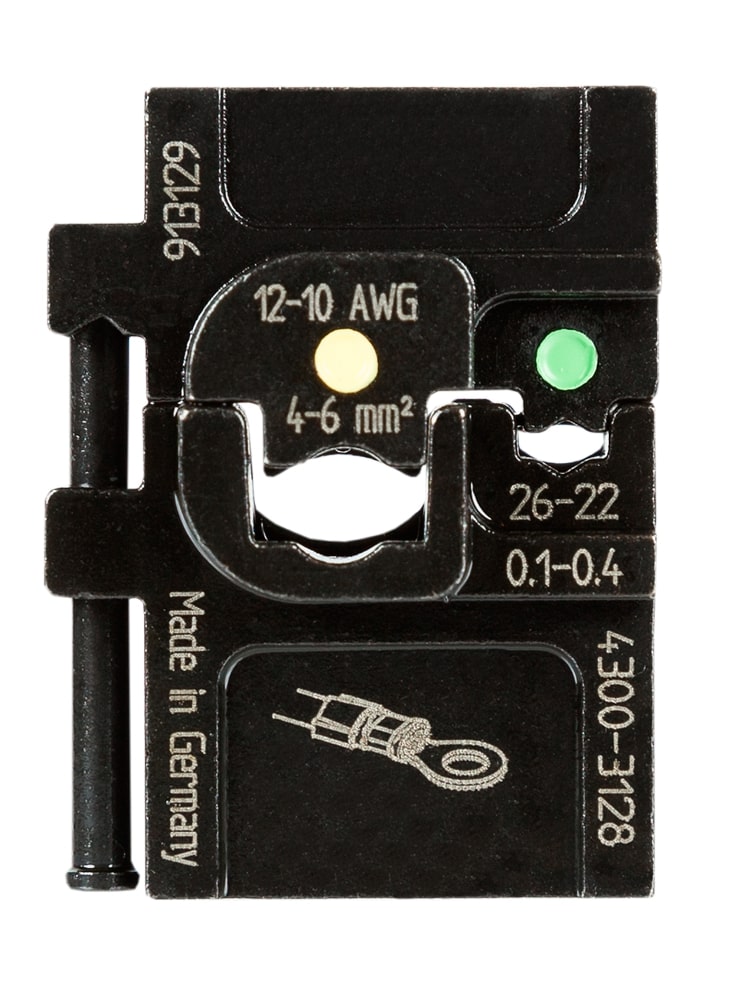

Pressmaster Die set for 26-22 AWG (0.1-0.4 mm2) and 12-10 AWG (4-6 mm2) green and yellow insulated t

Mobile die set/4300-3128/AAA

Mobile die set for insulated connectors, 0.1-6 mm²/AWG 26-10 (green, yellow). This is one of the interchangeable crimp die sets for the MCT frame. A wide range of crimp dies enables the user to cover all applications in just one tool frame.

*Reliable - crimping performance is consistent and accurate with a parallel action stroke.
*Easy to use - designed to give the user full visibility of the crimping process. Handles are shaped for low effort crimping with a one or two hand grip.
*Versatile - an easy-access release function allows fast and simple exchange of crimp dies. No special tools needed.
*Weight and size of the tool are optimized to make it easy to carry. Dies are kept in pairs and delivered in a modular reusable box.
*Comfortable - the entire tool frame is covered in smooth plastic for comfortable use, also for outdoor operations in all weather conditions
*Hole in handle allows attachment of safety strap.
*The part number is a reference to the die set without frame.


TECHNICAL DATA
Length: 29 mm/1.14"
Width: 18 mm/0.71"
Height: 39 mm/1.54"
Weight: 66 gr/0.15 lb
Wire size: 0.1-6 mm2 / AWG 26-10
Crimp dimensions mm/mm2:
0.1 - 0.4 mm2/4 - 6 mm2
Crimp dimensions inch/AWG:
AWG 26 - AWG 22/AWG 12 - AWG 10
Connector: Insulated connectors
Description: For pre insulated green and yellow connectors.
Life span, cycles: 20,000
