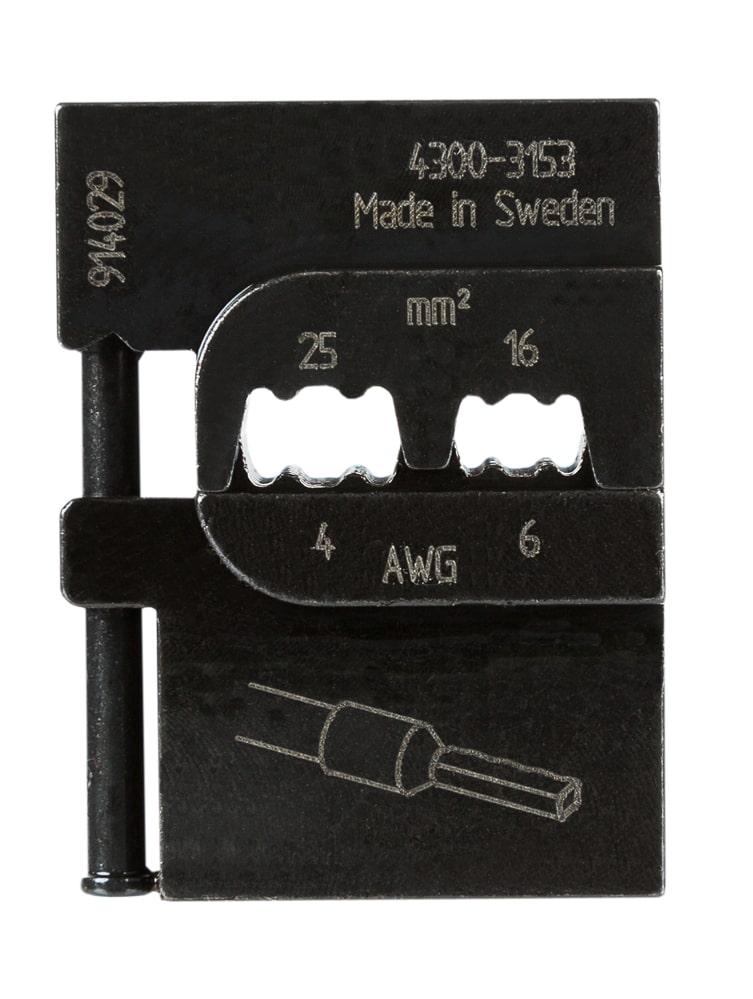

Pressmaster Die set for 6-4 AWG (16-25 mm2) insulated and noninsulated wire ferrules

SKU PRE4300-3153
Sold out
Original price $0.00 - Original price $0.00
Original price $0.00
$0.00
$0.00 - $0.00
Current price $0.00
Mobile die set/4300-3153/AAA Mobile die set for endsleeves 16-25 mm²/AWG 6-4. This is one of the interchangeable crimp die sets for the MCT frame. A wide range of crimp dies enables the user to cover all applications in just one tool frame. *Reliable - crimping performance is consistent and accurate with a parallel action stroke. *Easy to use - designed to give the user full visibility of the crimping process. Handles are shaped for low effort crimping with a one or two hand grip. *Versatile - an easy-access release function allows fast and simple exchange of crimp dies. No special tools needed. *Weight and size of the tool are optimized to make it easy to carry. Dies are kept in pairs and delivered in a modular reusable box. *Comfortable - the entire tool frame is covered in smooth plastic for comfortable use, also for outdoor operations in all weather conditions *Hole in handle allows attachment of safety strap. *The part number is a reference to the die set without frame.
Specifications

Length: 29 mm/1.14"Width: 14.5 mm/0.57"Height: 39 mm/1.54"Weight: 87 gr/0.19 lbWire size: 16-25 mm2 / AWG 6-4Crimp dimensions mm/mm2:16 mm2/25 mm2Crimp dimensions inch/AWG:AWG 6/AWG 4Connector: EndsleevesDescription: For endsleve connectors, both uninsulated and insulated.Life span, cycles: 20,000
