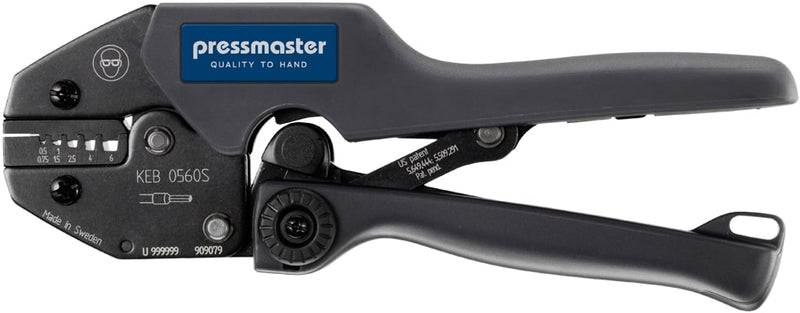

PRESSMASTER END SPLICE 0.5-6MM WIRE (4300-3696)

PRESSMASTER END SPLICE 0.5-6MM WIRE (4300-3696)

SKU PREKEB0560S
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Pressmaster KEB 0560S is a commercial-quality crimping tool with precise and trustworthy crimping of wire end sleeves (ferrules) according to DIN 46228 standards. The tool accepts wire sizes from 0.25 to 6.0 mm² (AWG 24-10) and is adaptable for both uninsulated and insulated ferrules. Ergonomically and durably engineered, this tool is particularly suitable for tasks that demand high-quality and repeatable electrical connections. Applications: *Electrical Installations: Suitable for making secure connections in household, commercial, and industrial electrical networks. *Control Panel Assembly: For making trustworthy crimps on control panels and switchboards. *Industrial Wiring: Suitable for wiring in heavy applications needing strong and reliable connections. *Maintenance and Repair: Convenient to use for repair activities where a repeatable and quality crimp is required. *Field Service: Handheld model allows for ease of use for on-site electrical services.
Features & Benefits

*Crimping Capacity: Supports wire sizes from 0.25 to 6.0 mm² (AWG 24-10) for broad use across many applications.*Crimp Profile: Applies a trapezoidal crimp profile, providing robust and dependable connections.*Side-Feed Design: Allowing simple insertion of wire end sleeves for efficient performance.*Ergonomic Handles: With short or long handles to fit the user's choice and prevent hand fatigue.*Low Hand Force Requirement: Has a special mechanism that reduces the hand force required significantly over other tools.*Heavy-Duty Construction: Constructed of high-strength, through-hardened alloy steel for long-term durability.*Safety Features: Fitted with a ratchet release mechanism to remove miscrimps and obstructions, and a hole in the handle permits the fitting of a safety strap.*Precision Adjustment: Fitted with an eccentric adjustment for reliable performance and calibration.*Non-Slip Pad: The tool is kept in position on a work surface by a pad on the tool.*Traceability: Each tool is assigned an individual serial number for tracking and quality control purposes.

Specifications

*Manufacturer: Pressmaster*Part Number: KEB0560S (4300-3696)*Crimping Range: 0.25-6.0 mm² (AWG 24-10)*Crimp Dimensions: 0.25-0.75 mm² 1-1.5 mm² 2.5 mm² 4 mm² 6 mm²*Dimensions: Length: 204 mm Width: 22 mm Height: 76 mm Weight: 505 grams*Crimp Profile: Trapezoidal*Feed Type: Side-fed*Handle Options: Short or long handles to suit*Cycle Life: Suitable for 50,000 cycles

More Information

Applications:*Electrical Installations: Suitable for making secure connections in household, commercial, and industrial electrical networks.*Control Panel Assembly: For making trustworthy crimps on control panels and switchboards.*Industrial Wiring: Suitable for wiring in heavy applications needing strong and reliable connections.*Maintenance and Repair: Convenient to use for repair activities where a repeatable and quality crimp is required.*Field Service: Handheld model allows for ease of use for on-site electrical services.
