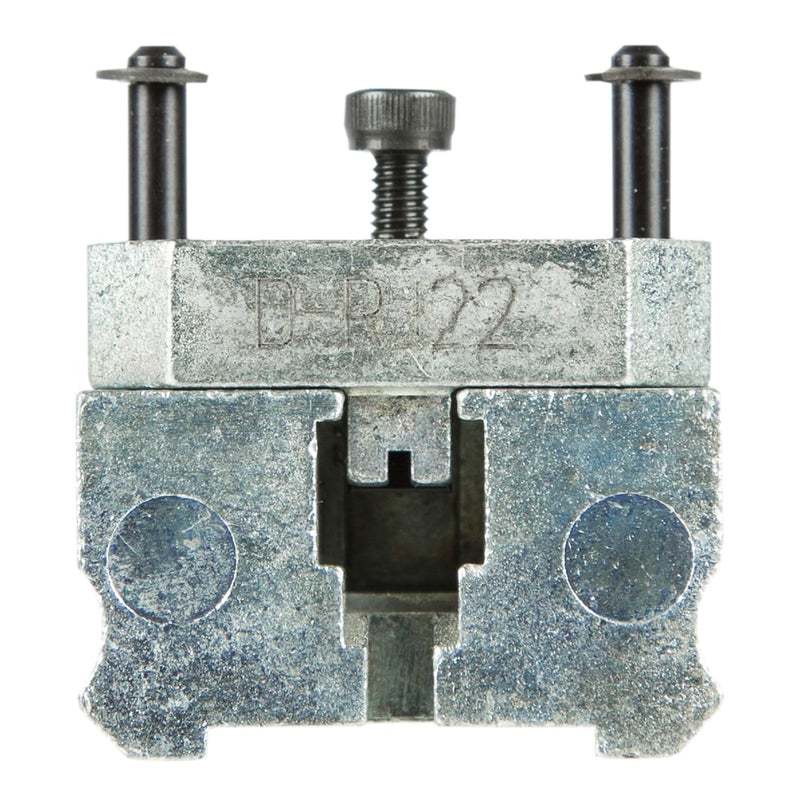

Pressmaster Modular plug die - RJ22 (4300-1012)

Pressmaster Modular plug die - RJ22 (4300-1012)

SKU PRED-RJ22
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
PMP4080/D-RJ 22 PMP-4080 Die set for modular plug connectors 4/4, 4/2. This is one of the interchangeable crimp die sets for the PMP-4080 frame. The user can cover several modular plug connectors in just one tool frame. *High strength, through hardened alloy steel construction *Full cycle crimp mechanism to ensure consistent, reliable crimp *Ratchet release mechanism to clear miscrimps and obstructions *Precision eccentric adjustment for consistent performance and ability to calibrate *Each tool has a unique serial number for traceability *The part number is a reference to the die set without frame. TECHNICAL DATA Length: 22 mm/0.87" Width: 30 mm/1.18" Height: 33 mm/1.3" Weight: 75 gr/0.17 lb Crimp dimensions mm/mm2: D-RJ 22 Crimp dimensions inch/AWG: D-RJ 22 Connector: Modular plug Description: 4/4, 4/2 Life span, cycles: 50,000
Features & Benefits

*High strength, through hardened alloy steel construction*Full cycle crimp mechanism to ensure consistent, reliable crimp*Ratchet release mechanism to clear miscrimps and obstructions*Precision eccentric adjustment for consistent performance and ability to calibrate*Each tool has a unique serial number for traceability*The part number is a reference to the die set without frame.

Specifications

Length: 22 mm/0.87"Width: 30 mm/1.18"Height: 33 mm/1.3"Weight: 75 gr/0.17 lbCrimp dimensions mm/mm2:D-RJ 22Crimp dimensions inch/AWG:D-RJ 22Connector: Modular plugDescription: 4/4, 4/2Life span, cycles: 50,000
