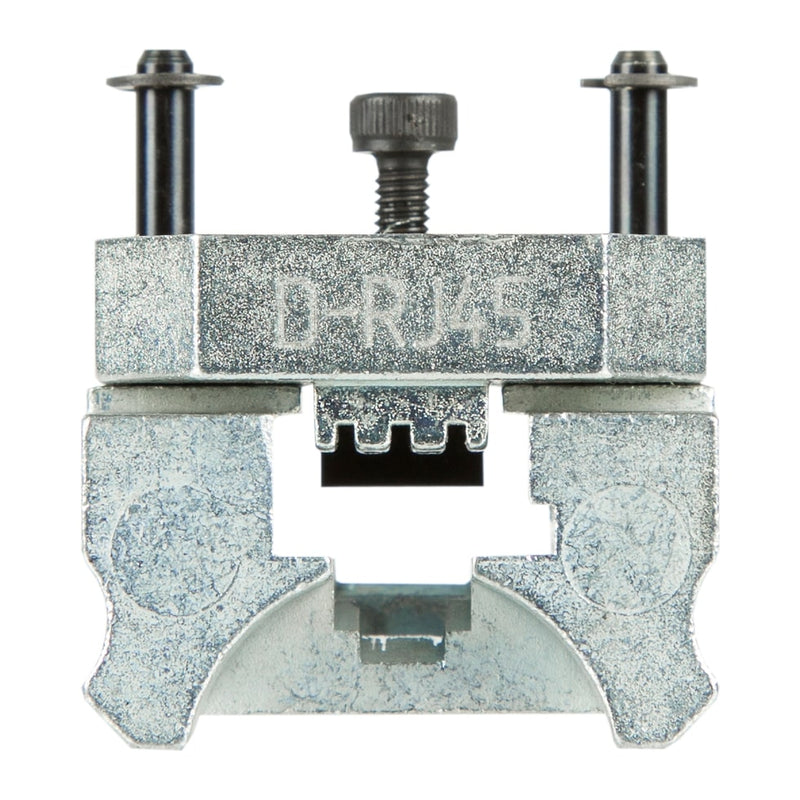

Pressmaster Modular plug die - RJ45 unkeyed version (4300-1321)

PMP4080/D-RJ 45-U PMP-4080 Die set for modular plug connectors 8/8, 8/6, 8/4 (UNKEYED). This is one of the interchangeable crimp die sets for the PMP-4080 frame. The user can cover several modular plug connectors in just one tool frame. *High strength, through hardened alloy steel construction *Full cycle crimp mechanism to ensure consistent, reliable crimp *Ratchet release mechanism to clear miscrimps and obstructions *Precision eccentric adjustment for consistent performance and ability to calibrate *Each tool has a unique serial number for traceability *The part number is a reference to the die set without frame. TECHNICAL DATA Length: 22 mm/0.87" Width: 30 mm/1.18" Height: 33 mm/1.3" Weight: 75 gr/0.17 lb Crimp dimensions mm/mm2: D-RJ 45-U Crimp dimensions inch/AWG: D-RJ 45-U Connector: Modular plug Description: 8/8, 8/6, 8/4 (UNKEYED) Life span, cycles: 50,000
