PRESSMASTER OPEN BARREL CRIMP TOOL (4300-3737)

PRESSMASTER OPEN BARREL CRIMP TOOL (4300-3737)

SKU PREKRB0115S
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

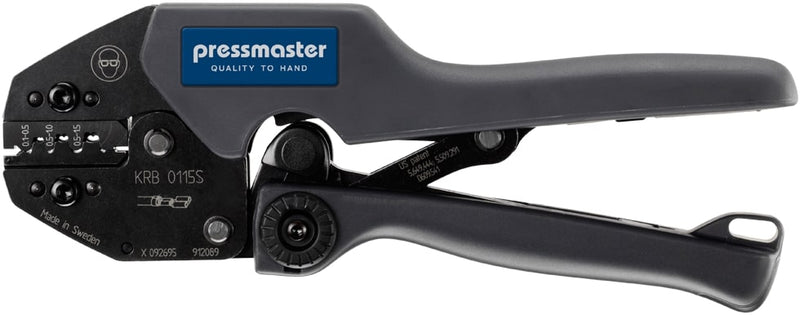

The Pressmaster KRB-0115S is a precision crimping tool for open barrel, non-insulated terminals. Ideal for wire sizes between 0.1 and 1.5 mm² (AWG 26-16), it provides professional-quality B/F-style crimps with reliability and consistency. Ideal for electrical, automotive, and industrial applications, the tool features ergonomic design elements and hardened steel parts for long-term durability. Applications: *Electrical Installations - Crimping open barrel terminals on control panels and wiring harnesses. *Automotive - Wiring repair, harness assembly, and terminal crimping on vehicles. *Industrial Maintenance - Ideal for equipment service involving secure, non-insulated crimps. *Aerospace & Defense - Employed in high-reliability applications where accuracy is imperative. *Renewable Energy - Secure terminations in solar and wind power applications.
Features & Benefits

*Durable Steel Construction - Constructed from through-hardened alloy steel for extended tool life.*Ergonomic Handle - Reduces hand fatigue and enhances comfort under repetitive use.*Full-Cycle Ratchet Drive Mechanism - Delivers maximum crimps all the time with regulated force.*Quick Release Clamp - Enables safe removal of partial or misaligned crimps by the operator.*Adjustable Eccentric Cam System - Provides regular crimp pressure over the duration of the tool's life cycle.*Non-Slip Pad Mount - Secures the tool in flat surfaces in operation.*Traceable - Every unit is assigned a serial number for quality tracking.

Specifications

*Manufacturer: Pressmaster*Part Number: KRB-0115S*Crimping Range: 0.1-1.5 mm² / AWG 26-16*Crimp Profile: B/F-Crimp*Compatible Connector Types: Open barrel non-insulated (2.8 mm and 4.8 mm)*Crimp Dimensions mm/mm²: 0.1-0.5 mm² / 0.5-1.0 mm² / 0.5-1.5 mm²*Crimp Dimensions inch/AWG: AWG 26-20 / AWG 20-18 / AWG 20-16*Life Span: Minimum 50,000 crimp cycles*Length: 204 mm / 8.03"*Width: 22 mm / 0.87"*Height: 76 mm / 2.99"*Weight: 560 g / 1.23 lb

More Information

Applications:*Electrical Installations - Crimping open barrel terminals on control panels and wiring harnesses.*Automotive - Wiring repair, harness assembly, and terminal crimping on vehicles.*Industrial Maintenance - Ideal for equipment service involving secure, non-insulated crimps.*Aerospace & Defense - Employed in high-reliability applications where accuracy is imperative.*Renewable Energy - Secure terminations in solar and wind power applications.
