Pressmaster Open Barrel Die Set 10-22AWG

Pressmaster Open Barrel Die Set 10-22AWG

SKU PRE4300-3146
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$75.00
$75.00 - $75.00
$75.00

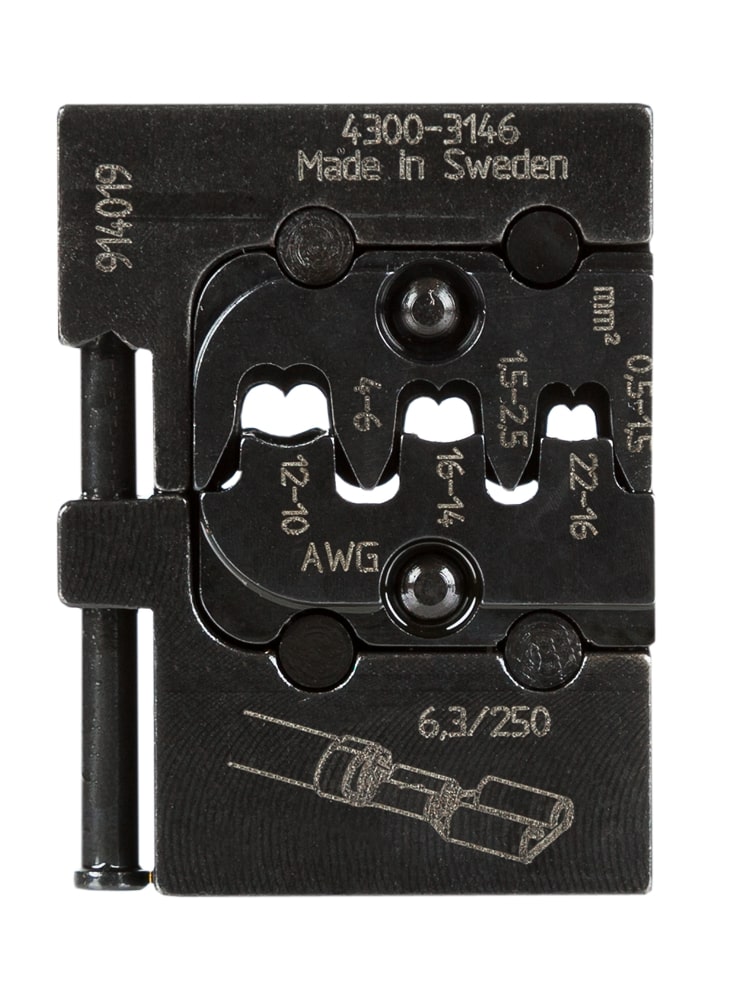

The Pressmaster 4300-3146 Die Set is designed for crimping bare ended open barrel connectors with a 6.3 mm (.250") tab width. It accommodates wire sizes from 0.5 to 6 mm² (AWG 22-10), which makes it universal for most applications. This die set is usable in Pressmaster's MCT frame, and the user can easily change between different dies without requiring any special tools. Applications: *Automotive Wiring: Ideal for use crimping connectors within automotive electrical wiring. *Industrial Equipment: Ideal for use on machinery and control panel wiring. *Electrical Installations: Utilized on a wide range of electrical installations that demand consistent and strong crimping. *Maintenance and Repair: Ideal for service technicians who want an easy-to-use, portable, and versatile crimping alternative.
Features & Benefits

Efficient Crimping: Provides reliable and precise crimps with a parallel action stroke.User-Friendly Design: Gives complete visibility of the crimping operation; handles contoured for effortless crimping one-hand or two-hand grip.Easy Die Exchange: Includes easy-access release mechanism for speedy and straightforward die exchanges without special tools.Portable and Durable: Balanced weight and size for convenient portability; smooth plastic covers the entire tool frame for comfortable use in any weather.Safety Feature: Features a hole in the handle to attach a safety strap.

Specifications

*Wire Size: 0.5-6 mm² / AWG 22-10*Crimp Dimensions: 0.5-1.5 mm² / AWG 22 1.5-2.5 mm² / AWG 16 4-6 mm² / AWG 12-10*Connector Type: Non-insulated open barrel connectors (6.3 mm /.250")*Material: High-quality steel with a tough finish*Weight: 74 grams (0.16 lbs)*Length: 29 mm (1.14")*Width: 10 mm (0.39")*Height: 39 mm (1.54")*Service Life: About 20,000 cycles
