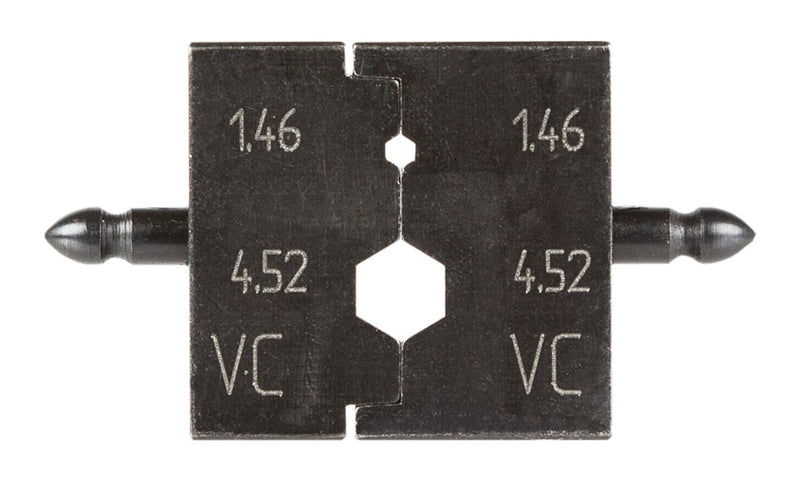

Pressmaster Precision die - 1.46/4.52 mm hex (BT2001/3002 TZC75024 etc) (4300-1070B)

Pressmaster Precision die - 1.46/4.52 mm hex (BT2001/3002 TZC75024 etc) (4300-1070B)

SKU PREPCC5310-03
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
PCC 5310/03 VC PCC-5310 Die set with nest 1.46 mm, 4.52 mm/.057", .178", HEX-Crimp. This is one of the interchangeable crimp die sets for the PCC-5310 frame. The user can cover several coaxial connectors in just one tool frame. *High strength, through hardened alloy steel construction *Full cycle crimp mechanism to ensure consistent, reliable crimp *Ratchet release mechanism to clear miscrimps and obstructions *Precision eccentric adjustment for consistent performance and ability to calibrate *Each tool has a unique serial number for traceability *The part number is a reference to the die set without frame.
Features & Benefits

*High strength, through hardened alloy steel construction*Full cycle crimp mechanism to ensure consistent, reliable crimp*Ratchet release mechanism to clear miscrimps and obstructions*Precision eccentric adjustment for consistent performance and ability to calibrate*Each tool has a unique serial number for traceability*The part number is a reference to the die set without frame.

Specifications

Length: 38 mm/1.5"Width: 21 mm/0.83"Height: 8 mm/0.31"Weight: 30 gr/0.07 lbCrimp dimensions mm/mm2:1.46 mm HEX/4.52 mm HEXCrimp dimensions inch/AWG:0.057/0.178Connector: Coaxial connectorDescription: For type BT connectors on BT2001/3002 TZC75024.Life span, cycles: 50,000Cables: RG122/U, RG180B/U, RG279/U, RG303/U
