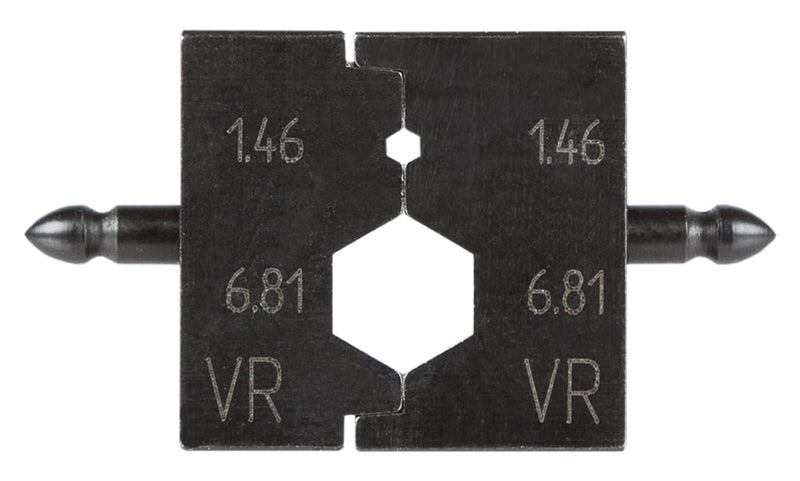

Pressmaster Precision die - 1.46/6.81 mm hex (BT2003 etc) (4300-1070F)

Pressmaster Precision die - 1.46/6.81 mm hex (BT2003 etc) (4300-1070F)

SKU PREPCC5310-07
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
PCC 5310/07 VR PCC-5310 Die set with nest 1.46 mm, 6.81 mm/.057", .268", HEX-Crimp. This is one of the interchangeable crimp die sets for the PCC-5310 frame. The user can cover several coaxial connectors in just one tool frame. *High strength, through hardened alloy steel construction *Full cycle crimp mechanism to ensure consistent, reliable crimp *Ratchet release mechanism to clear miscrimps and obstructions *Precision eccentric adjustment for consistent performance and ability to calibrate *Each tool has a unique serial number for traceability *The part number is a reference to the die set without frame.
Features & Benefits

*High strength, through hardened alloy steel construction*Full cycle crimp mechanism to ensure consistent, reliable crimp*Ratchet release mechanism to clear miscrimps and obstructions*Precision eccentric adjustment for consistent performance and ability to calibrate*Each tool has a unique serial number for traceability*The part number is a reference to the die set without frame.

Specifications

Length: 38 mm/1.5"Width: 21 mm/0.83"Height: 8 mm/0.31"Weight: 30 gr/0.07 lbCrimp dimensions mm/mm2:1.46 mm HEX/6.81 mm HEXCrimp dimensions inch/AWG:0.057/0.268Connector: Coaxial connectorDescription: For type BT connectors on BT2003.Life span, cycles: 50,000
