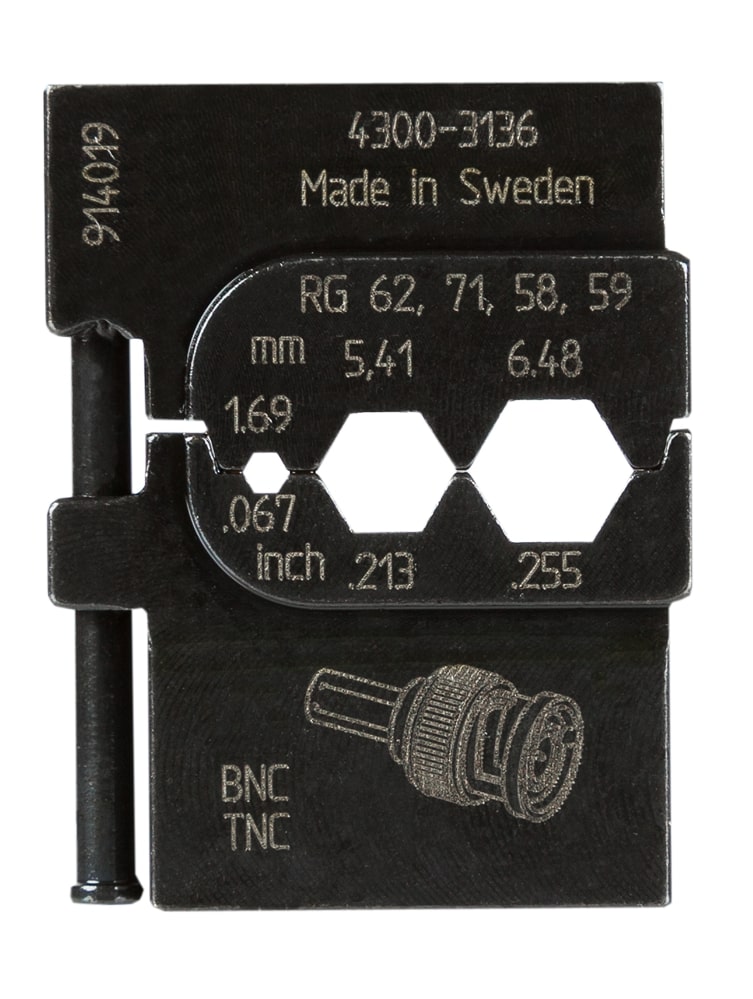

PRESSMASTER RG58/59 DIE SET

PRESSMASTER RG58/59 DIE SET

SKU PRE4300-3136
by Pressmaster
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Pressmaster 4300-3136 Die Set is a portable, precision-die set for crimping coaxial connectors like BNC and TNC on RG58, RG59, RG62, and RG71 types of cables. It's part of the Pressmaster Modular Crimp Tool (MCT) system that enables the user to address a broad range of applications with a single universal tool frame and replacement dies. This die set provides safe, high-quality crimps to provide mechanical integrity and signal integrity, which are crucial in RF, video, and communication systems.
Features & Benefits

*Mobile Die Set for Coaxial Connectors: Compatible with BNC, TNC connectors on RG58, RG59, RG62, and RG71 cables.*Flexible Compatibility: Accommodates a wide variety of coaxial cable types such as RG108A/U, RG142B/U, RG210/U, and others.*Exchangeable with MCT Frame: With a frame design suitable for mounting Pressmaster's Modular Crimp Tool, facilitating tool-free die change and speedy die changes.*Precise Crimping Performance: Ensures high-accuracy crimps that guarantee good electrical connection and mechanical grip.*Heavy-Duty and Durable: Built with hardened steel, supporting a service of up to 20,000 cycles.

Specifications

*Manufacturer: Pressmaster*Part Number: 4300-3136*Connector Type: Coaxial connectors (such as BNC, TNC)*Compatibility Cable: RG58C/U, RG59B/U, RG62A/U, RG62B/U, RG71B/U, RG108A/U, RG142B/U, RG210/U, RG223/U, RG302/U*Die Type: Interchangeable die set for MCT system*Material: Hardened, precision-machined steel*Crimp Dimensions (mm/mm²): 1.69 mm HEX / 5.41 mm HEX / 6.48 mm HEX*Crimp Dimensions (inch/AWG): 0.067" / 0.213" / 0.255"*Length: 30 mm / 1.18"*Width: 10 mm / 0.39"*Height: 39 mm / 1.54"*Weight: 72 grams / 0.16 lb*Compatibility: Compatible with Pressmaster Modular Crimp Tool (MCT) frame*Country of Origin: Sweden*Life Span: Approx. 20,000 cycles

More Information

*Electronics: Utilized in the construction of RF connectors for equipment that demands dependable coaxial transmission.*Telecommunications: Ideal for cable installation and termination in telecommunication networks.*Broadcast and Video: Perfect for AV installations, surveillance systems, and broadcast signal routing.*Automotive: Ideal for coaxial-based communication systems in automobiles.*Field Service: Convenient for technicians who deal with coaxial installations or repairs in the field.
