Toptul 6pcs Quick Interchangeable Ratchet Crimping Tool Kit

SKU TOPGAAI0605
by Toptul
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

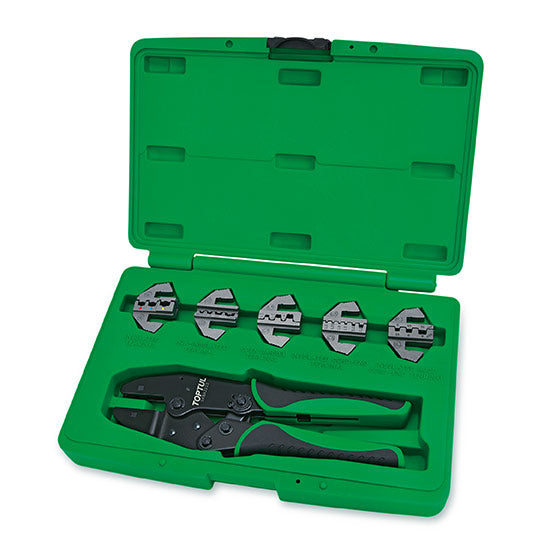

The Toptul 6 Piece Quick Interchangeable Ratchet Crimping Tool Kit GAAI0605 is designed for crimping a wide range of electrical terminals with consistent force and accuracy. The kit includes a quick interchangeable ratchet crimper and five interchangeable crimping jaw sets for insulated terminals (0.5 to 6.0 mm²), non-insulated terminals (0.5 to 10.0 mm²), open-barrel terminals (0.5 to 6.0 mm²), insulated cord-end terminals for small sizes (0.5 to 4.0 mm²), and insulated cord-end terminals for large sizes (6.0 to 16.0 mm²). The ratchet mechanism provides controlled crimping force, while the quick-change system allows jaw inserts to be swapped without tools. The crimping jaws are made from AISI 4140 alloy steel, and the kit is supplied in a blow-mould case measuring 280 mm x 195 mm x 50 mm for organised storage.
Features & Benefits

Ratchet mechanism ensures consistent crimping pressure and reduced operator effort.Quick interchangeable jaw system allows fast changes without additional tools.AISI 4140 alloy steel jaws provide durability and wear resistance.Ergonomic comfort-grip handles support control during repetitive use.Covers a wide range of terminal types and sizes for versatile applications.Supplied in a blow-mould case for organised storage and transport.

Specifications

Manufacturer: ToptulPart Number: GAAI0605Number of Pieces: 6Crimping Tool Type: Ratchet, interchangeable jawsJaw Material: AISI 4140 alloy steelHandle Type: Ergonomic comfort-gripCase Type: Blow mould caseCase Dimensions: 280 mm x 195 mm x 50 mmContents:DKBA2222 Quick Interchangeable Ratchet CrimperDLAA0601 Insulated Terminal Jaw: 0.5 to 1.0 mm², 1.5 to 2.5 mm², 4.0 to 6.0 mm²DLAA1001 Non-Insulated Terminal Jaw: 0.5 to 1.5 mm², 1.5 to 2.5 mm², 4.0 to 6.0 mm², 10.0 mm²DLAA0602 Open-Barrel Terminal Jaw: 0.5 to 1.0 mm², 1.5 to 2.5 mm², 4.0 to 6.0 mm²DLAA0401 Insulated Cord-End Terminal Jaw Small: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm², 4.0 mm²DLAA1601 Insulated Cord-End Terminal Jaw Large: 6.0 mm², 10.0 mm², 16.0 mm²
