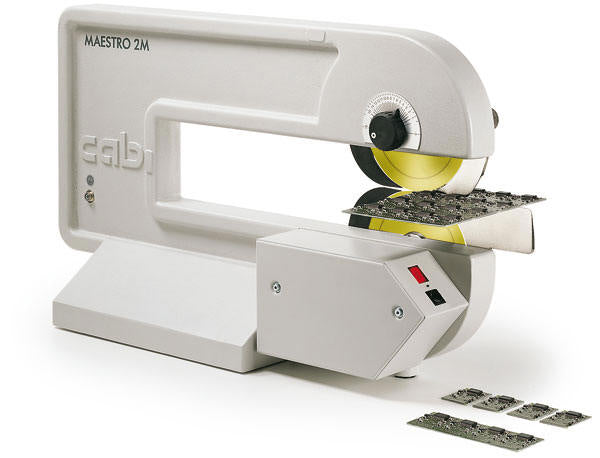

Cab Maestro 2M PCB Separator- Motor Drive

Cab Maestro 2M PCB Separator- Motor Drive

SKU CAB893390M
by Cab
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
CAB Maestro 2M PCB Separator WITH 230 VOLT Motor drive. MAESTRO 2 separates PCBs fast and economically. The circular blades and guides made from special steel ensure a long service life. Can also get the optional motor drive unit. The compact and stable aluminium frame requires only a minimum of space. The pre-scored grooves can be inter-rupted by cut-outs with a length of up to approx. 5 mm. The PCB is held with both hands and fed between the circular blades for separation. The clearance between the upper guide and the lower guide is adjustable to ensure that the PCB is only fed through the machine in the pre-scored groove. Separation type Component side and solder side: circular blades Separation speed Maestro 2M ( Motorised version ) Approximately 100/200/300 mm/s Separation length 15 - 300 mm (.60" - 11.8") All the new Maestro units come with Titanium coated blades.
Features & Benefits

*Fast and Efficient Separation: Motorized operation allows separation speeds of approximately 100/200/300 mm/s.*Durable Blades and Guides: Made from special steel with titanium coating for long service life.*Compact and Stable Frame: Aluminium construction minimizes space requirements while providing robust support.*Adjustable Clearance: Ensures PCBs are fed only through the pre-scored grooves, maintaining precise separation.*Versatile Separation: Handles both component and solder sides with circular blades.*Accommodates Cut-Outs: Can separate pre-scored grooves interrupted by cut-outs up to approximately 5 mm.

Specifications

*Manufacturer: Cab*Part Number: CAB893390M*Type: PCB Separator ā€“ Motor Drive*Operation: Motorized, 230 V*Separation Type: Component side and solder side ā€“ circular blades*Separation Speed: Approximately 100/200/300 mm/s*Separation Length: 15 ā€“ 300 mm (0.60" ā€“ 11.8")*Frame Material: Aluminium*Blade Coating: Titanium*PCB Feeding: Manual (held with both hands) with motorized drive option

More Information

Applications:*Electronics manufacturing for fast and precise PCB separation.*Prototyping and small-batch PCB production.*Separation of pre-scored grooves in PCBs with minor cut-outs.*Workshops and laboratories handling medium to large volumes of PCBs.*Environments requiring automated PCB separation for increased efficiency.

Operators Manual
