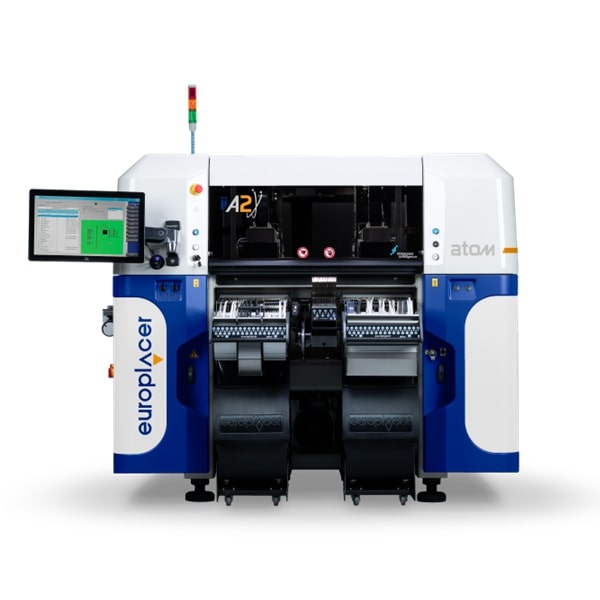

Europlacer ii-A2 Pick and Place SMT Machine

The Europlacer ii-A2 is a compact, high-speed SMT pick-and-place machine for high-mix, low-to-medium volume production. It offers high placement speed and flexibility, which is suitable for intricate and diverse PCB assemblies. The ii-A2 has dual Pulsar pipette heads with the ability to place multi-components simultaneously, enhancing productivity without compromising precision and quality. Key Features: *Dual Pulsar Pipette Heads: Two independent heads with 8 smart nozzles each for rapid and flexible component placement. *High-Speed Performance: Up to 50,000 components per hour (CPH), high throughput. *Wide Component Range: Positions components from 01005 to 13mm x 13mm with a height of up to 7mm. *Compact and Modular: Space-saving design accommodating large PCBs up to 1070mm x 715mm. *Optional Vision System: Fixed upward-facing camera for accurate placement of larger or fine-pitch components. *Advanced Conveyor: Smart software-controlled conveyor with patented board stops for precise PCB positioning. *Smart Nozzle System: All nozzles are capable of placing any component, enabling dynamic line balancing. *Industry 4.0 Compatibility: Integrated IPC CFX support for connectivity, traceability, and integration in smart factories. Specifications: *Placement Heads: 2 x Pulsar pipette heads with 8 smart nozzles each *Maximum Placement Speed: Up to 50,000 components per hour *Component Range: From 01005 to 13mm x 13mm *Maximum Component Height: 7mm *Feeder Capacity: Accommodates up to 162 x 8mm feeders; tape widths range from 4mm to 104mm *PCB Size Handling: Handles up to 1070mm x 715mm *Placement Accuracy: 22 µm (QFPs) to 46 µm (chips) at 3 sigma Applications: Europlacer ii-A2 is particularly well suited to: *High-mix production environments *Low-to-medium volume manufacturing *Complex PCB assemblies with varied components *Industries like electronics, automotive, industrial control, aerospace, medical, and defense
