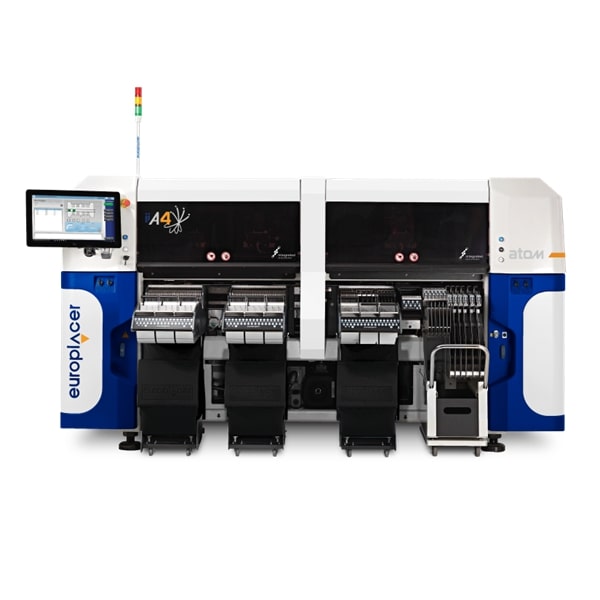

Europlacer ii-A4 Pick and Place SMT Machine

SKU EUii-A4
by Europlacer
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Europlacer ii-A4 is a flexible, high-speed surface-mount technology (SMT) pick-and-place machine suitable for use in high-volume manufacturing environments. With Europlacer's heritage of flexibility, the ii-A4 pairs cutting-edge technology with high-speed performance to serve the needs of contemporary electronics manufacturing. Applications: The Europlacer ii-A4 is well-suited for: *High-Volume Production: Effectively manages large-volume manufacturing runs with high throughput demands. *Complex PCB Assemblies: Able to place a broad variety of components, including large and fine-pitch devices. *Electronics Manufacturing: Used in consumer electronics, automotive, industrial control, aerospace, medical, and defense industries.
Features & Benefits

*High-Speed Placement: Attains up to 104,000 components per hour (CPH) placement speed, maximizing throughput in mass-scale production.*Quad Pulsar Pipette Heads: Four high-end Pulsar pipette heads with 8 placement smart nozzles each, for the simultaneous multi-component placement.*Intelligent Conveyor System: Patented software-controlled conveyor without mechanical board stops that provides accurate PCB positioning and most efficient head travel paths.*Component Range: Placing components from 01005 up to 13mm x 13mm with a maximum height of 7mm.*Feeder Capacity: Has feeder capacity to hold 264 x 8mm feeder positions with tape widths from 4mm up to 104mm.*Placement Accuracy: Has placement accuracy from 22µm for QFP to 50µm for chip at 3 sigma.*Industry 4.0 Ready: Has support for IPC CFX for improved connectivity, traceability, and integration into smart factory environments.

Specifications

*Placement Heads: 4 Pulsar pipette heads with 8 smart nozzles per head.*Max Placement Speed: Max placement speed of up to 104,000 components per hour (CPH).*Component Size Range: 01005 to 13mm x 13mm.*Max Component Height: 7mm.*Feeder Capacity: 264 x 8mm feeder positions; can accommodate tapes from 4mm to 104mm in width.*PCB Size Handling: Up to 825mm x 715mm.*Placement Accuracy: 22µm (QFPs) to 50µm (chips) at 3 sigma.

More Information

Applications:The Europlacer ii-A4 is well-suited for:*High-Volume Production: Effectively manages large-volume manufacturing runs with high throughput demands.*Complex PCB Assemblies: Able to place a broad variety of components, including large and fine-pitch devices.*Electronics Manufacturing: Used in consumer electronics, automotive, industrial control, aerospace, medical, and defense industries.
