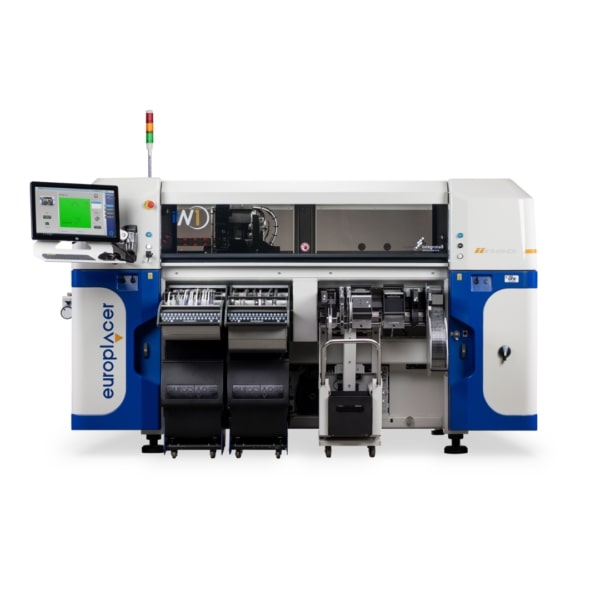

Europlacer ii-N1 Pick and Place SMT Machine

SKU EUii-N1
by Europlacer
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Europlacer ii-N1 is a state-of-the-art SMT pick-and-place machine designed for high-mix, low-to-medium volume manufacturing. It is an evolution of the popular iineo platform with superior flexibility, precision, and intelligent automation - perfect for prototyping and advanced PCB assembly. Applications: The Europlacer ii-N1 is suited for: *Prototyping and new product introduction (NPI) *High-mix production environments *Low-to-medium volume assembly lines *Precision PCB assembly with complex components *Electronics, automotive, industrial control, and aerospace applications
Features & Benefits

*High-speed placement: Up to 15,390 components per hour (CPH) with a 12-nozzle Tornado rotary turret head.*Flexible component range: Accommodates components from 03015 metric to 99mm x 99mm, 34mm tall, and up to 300g.*Smart nozzle technology: Unlimited nozzle locations for genuine line balancing and quick changeovers.*Advanced vision system: Two cameras provide accurate identification of ultra-small and intricate components.*Intelligent conveyor system: Utilizes optical sensors to automatically position PCBs without mechanical stops.*Optional electrical testing: Integrated component tester with verifiable calibration standards.*Easy-to-use software: Driven by Siemens Valor software for simple programming and process control.

Specifications

*Placement head: Single Tornado turret head with 8 or 12 smart nozzles*Placement speed: Up to 15,390 CPH (with 12-nozzle setup)*Component range: 03015 metric to 99mm x 99mm, up to 34mm height, 300g weight*Feeder capacity: Up to 264 x 8mm feeders and 10 JEDEC tray slots*PCB size capability: Up to 1610mm x 600mm*Placement accuracy: 22 Āµm for QFPs, 46 Āµm for chips (3 sigma)*Conveyor: Smart motorized rail width adjustability with programmable stop positions

More Information

Applications:The Europlacer ii-N1 is suited for:*Prototyping and new product introduction (NPI)*High-mix production environments*Low-to-medium volume assembly lines*Precision PCB assembly with complex components*Electronics, automotive, industrial control, and aerospace applications
