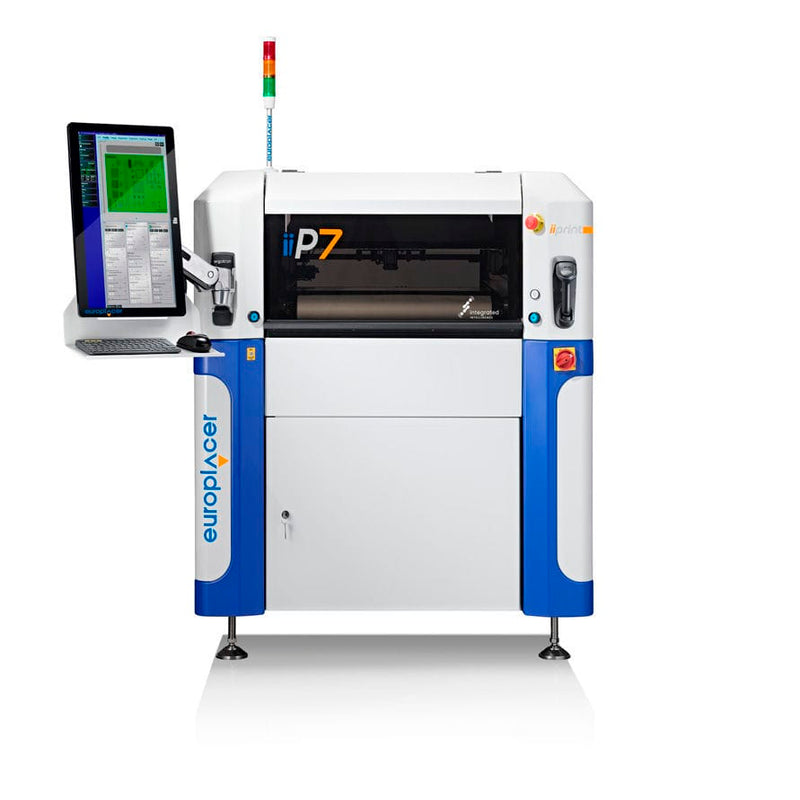

Europlacer ii-P7 Inline Stencil Printer

Europlacer ii-P7 Inline Stencil Printer

SKU EUii-P7.
by Europlacer
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Europlacer ii-P7 is a low-maintenance, high-speed screen printer suited for high-mix and high-volume production environments. It combines cutting-edge technologies to offer superior speed, precision, and flexibility, making it suitable for contemporary electronics manufacturing processes. Applications: The Europlacer ii-P7 is ideal for: *High-Mix Production: Best suited for applications where rapid changeovers and flexibility in processing different board sizes and types are needed. *High-Volume Manufacturing: Meets the demands of large-scale production with its high-speed potential. *Complex PCB Assemblies: Handles double-sided boards with high-profile components, providing accurate paste placement. *Electronics Manufacturing: Used in applications such as consumer electronics, automotive, industrial control, aerospace, medical, and defense industries.
Features & Benefits

*High-Speed Printing: Supports cycle times of up to 5 seconds, standard mode at 9 seconds, and Velocity+ mode at 5 seconds, without decreasing precision.*Advanced Dispensing Capabilities: Fitted with the Paste Dispense Unit (PDu) for controlled solder paste application from 600g tubes, and the Advanced Dispense Unit (ADu+) for accurate dispensing of solder and paste.*Improved Cleaning System: Has a single-pass under-screen cleaner with a quick-change cartridge system, minimizing cleaning time and enhancing changeover speed.*Smart Calibration: Employs SmartCal 2 technology, gathering 88% more data in 90 seconds for maximum accuracy and repeatability.*Barcode Label Placement: Facilitates S-Track label placement for end-to-end process traceability from the beginning of the production process.*Large Print Area: Supports board sizes up to 610mm x 515mm, with a maximum PCB weight of 1kg and thickness from 0.2mm to 8mm.*Dual Roving Camera System: Provides accurate alignment and registration for uniform print quality.*Underside Clearance: Suits a 30mm underside PCB tooling clearance, allowing complex double-sided boards with high underside components.

Specifications

*Max Board Size: 610mm (x) x 515mm (y)*Min Board Size: 45mm (x) x 45mm (y)*Max PCB Weight: 1kg (2.2lb)*PCB Thickness: 0.2mm (0.008") up to 8mm (0.315")*Full Process Repeatability: 20µm @ 6 sigma, 2Cpk*Print Speed: 5-250mm/s*Cycle Time: Standard: 9 seconds Velocity: 7 seconds Velocity+: 5 seconds (excluding process components)

More Information

Applications:The Europlacer ii-P7 is ideal for:*High-Mix Production: Best suited for applications where rapid changeovers and flexibility in processing different board sizes and types are needed.*High-Volume Manufacturing: Meets the demands of large-scale production with its high-speed potential.*Complex PCB Assemblies: Handles double-sided boards with high-profile components, providing accurate paste placement.*Electronics Manufacturing: Used in applications such as consumer electronics, automotive, industrial control, aerospace, medical, and defense industries.
