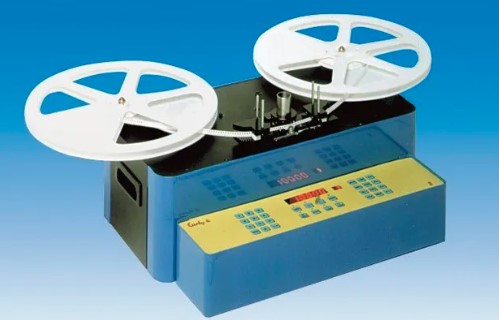

Olamef COUNTY-S EVO Motorised counter for SMD components, 220v

SKU OL8301.131
by Olamef
Sold out
Original price $0.00 - Original price $0.00
Original price $0.00
$0.00
$0.00 - $0.00
Current price $0.00
The County-S EVO is a motorised counter for taped SMD components.
Features & Benefits

It can operate in two different modes: Totaliser mode: components are counted from zero, tape feed is motorised and the counter automatically stops at the tape’s end, to prevent loss of the total. Preset mode: the desired component number is keyed on the keyboard and the counter automatically stops when it reaches the corresponding component.The display screen shows the following: count direction, the number of holes per component, the counting mode, the operator name, the final tally, and the date and time.

Specifications

Maximum tape Height: 56 MMMaximum Reel Diameter: 400 MM OR 650 WITH SUPPORTS 8301.150Counting: UP/DOWNPartial Counting MemoryPre-Selection ModeAdjustable feeding tapeStep by Step feed: One component at a timeSerial connection with PC and printerDisplay: Blue LCD with a shiny back sideMaximum Counting Speed: 200 PCS/SEC - (1 PC PER HOLE)Number Of Holes Per Component: From 0,5 TO 99
