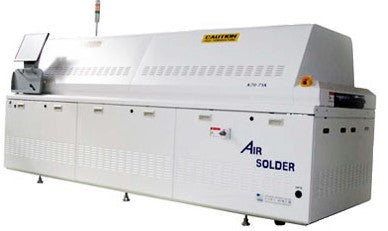

SMD Reflow Oven 7 Zone
oven information.jpg
tsm a70.jpg
oven information.jpg
tsm a70.jpg

SMD Reflow Oven 7 Zone

SKU TSMTRA-I-F71
by TSM
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
TRA I- F71 Total Soldering Machinery Their high-quality ovens satisfy every need in all electronic fields and beyond. Highly customizable ovens starting from the number of zones, to the width as well as numerous options for cooling RTPM (REAL TIME TEMPERATURE PROFILE MONITORING SYSTEM) OPTION Set the optimum profile and checks if the set profile is maintained within the error range by measuring the temperature in the oven in real time. (alarm sounds when there is an error) Temperature profile memory for each product No time loss when changing production model-sperate profile check unnecessary Reflow information saved in real time -default setting is one minute interval Remote Control Function-Allows remote control function from an office or host computer Total Heating Length 2,000mm Heating Zones 7 Cooling Zones 1 Peak Power 30KW/21KW (Standard Start / Partial Start) Power Consumption 10KW ( in Stable Operation ) Dimension Length 3,330mm Hight & width 1,420 W x 1,550 H
Features & Benefits

7 heating zones and 1 cooling zone for precise thermal controlTotal heating length of 2,000 mm for uniform solderingRTPM system (optional) monitors real-time temperature and maintains optimal profilesAlarm system notifies operators of deviations from set profilesTemperature profile memory for each product allows instant setup when changing production modelsRemote control capability for operation and monitoring from office or host computerReflow information saved in real-time (default 1-minute intervals) for traceabilityCustomizable width, zones, and cooling options to meet production requirementsEfficient power consumption with stable operation at 10 kW

Specifications

Manufacturer: Total Soldering MachineryModel: TSMTRA-I-F71Type: SMD Reflow OvenHeating Zones: 7Cooling Zones: 1Total Heating Length: 2,000 mmPeak Power: 30 kW (Standard Start) / 21 kW (Partial Start)Power Consumption (Stable Operation): 10 kWDimension (L x W x H): 3,330 mm x 1,420 mm x 1,550 mmOptional Features:RTPM (Real-Time Temperature Profile Monitoring)Remote control functionalityTemperature profile memory for each product
