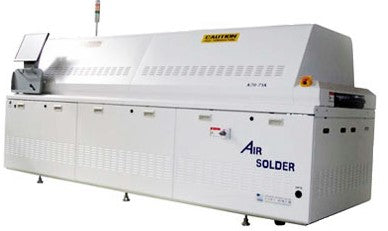

SMD Reflow Oven 8 Zones

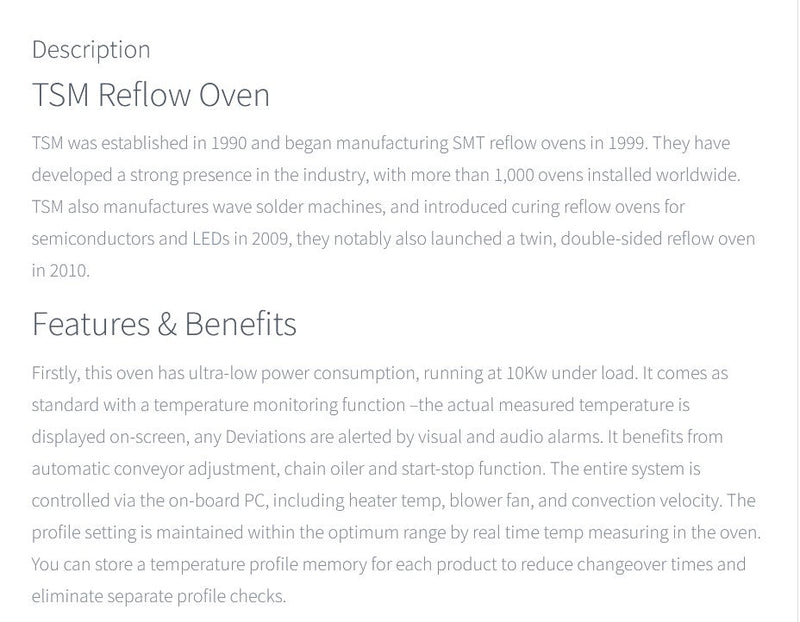

oven information.jpg
tsm a70.jpg
oven information.jpg
tsm a70.jpg

SMD Reflow Oven 8 Zones

SKU TSMTRA-I-F82S
by TSM
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
TRA I- F82S Total Soldering Machinery Their high-quality ovens satisfy every need in all electronic fields and beyond. Highly customizable ovens starting from the number of zones, to the width as well as numerous options for cooling RTPM (REAL TIME TEMPERATURE PROFILE MONITORING SYSTEM) OPTION Set the optimum profile and checks if the set profile is maintained within the error range by measuring the temperature in the oven in real time. (alarm sounds when there is an error) Temperature profile memory for each product No time loss when changing production model-sperate profile check unnecessary Reflow information saved in real time -default setting is one minute interval Remote Control Function-Allows remote control function from an office or host computer Total Heating Length 2,200mm Heating Zones 8 Cooling Zones 2 Peak Power 34KW/24KW (Standard Start / Partial Start) Power Consumption 10KW ( in Stable Operation ) Dimension Length 3,620mm Hight & width 1,420 W x 1,550 H
Features & Benefits

8 heating zones and 2 cooling zones for precise thermal controlTotal heating length of 2,200 mm ensures uniform soldering across medium to large PCBsOptional RTPM system monitors real-time temperature and triggers alarms for deviationsTemperature profile memory allows rapid product changeovers without time lossReal-time reflow information saved at default 1-minute intervals for traceabilityRemote control function allows monitoring and operation from office or host computerHighly customizable oven width, zones, and cooling options for flexible productionStable power consumption (10 kW) ensures energy-efficient operationReliable quality suitable for diverse electronics manufacturing environments

Specifications

Total Heating Length 2,200mmHeating Zones 8Cooling Zones 2Peak Power 34KW/24KW (Standard Start / Partial Start)Power Consumption 10KW ( in Stable Operation )Dimension Length 3,620mmHight & width 1,420 W x 1,550 H
