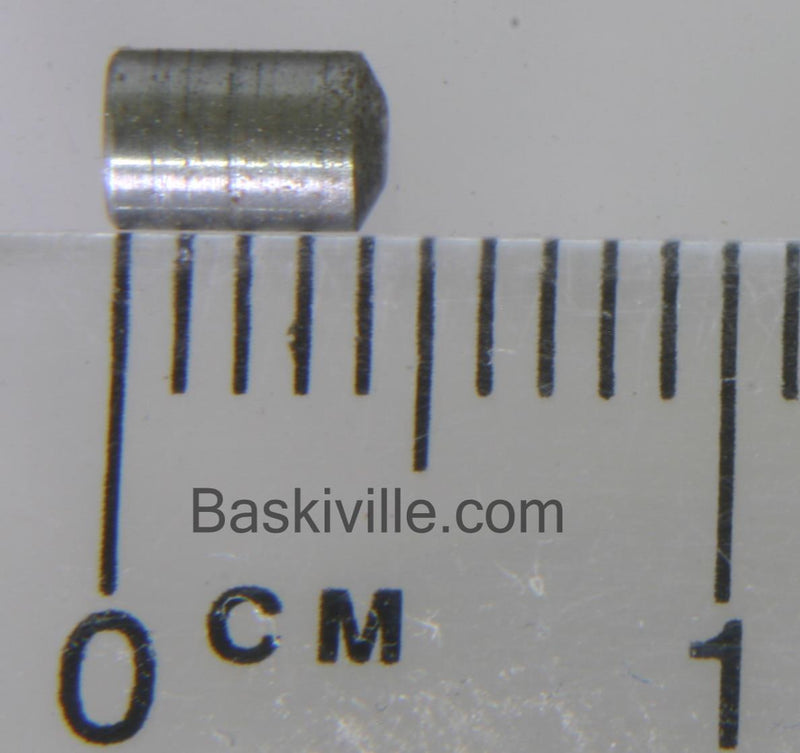

Speedprint Board Locating Pin 3mm Dia

Speedprint Board Locating Pin 3mm Dia

SKU SPS2501
by Speedprint
$0.00 - $0.00
$0.00
$57.75
$57.75 - $57.75
$57.75
The Speedprint SPS2501 Board Locating Pin is a precision-engineered fixture pin designed for accurate and repeatable PCB positioning within Speedprint stencil printers and automated SMT assembly systems. Built for reliability and durability, it ensures consistent board alignment during solder paste printing or component placement, reducing setup time and improving yield in high-precision manufacturing environments. Applications: *PCB alignment and fixturing in Speedprint stencil printers *Electronics manufacturing and SMT assembly lines *Tooling and fixture maintenance for Speedprint SP series equipment *Precision positioning for automotive electronics, consumer electronics, and industrial control boards

Stock available: 1

Features & Benefits

*High-Precision Alignment - Provides accurate board location, ensuring precise registration during stencil printing.*3 mm Diameter Design - Ideal for standard PCB tooling holes, offering secure and stable fixture.*Durable Construction - Made from high-grade stainless steel or equivalent hardened alloy to withstand repeated use.*Quick Installation - Compatible with Speedprint printer tooling plates, allowing fast changeovers.*Improved Process Repeatability - Maintains consistent alignment across production runs, enhancing process control and minimizing printing defects.*Corrosion-Resistant Finish - Ensures long service life even in high-humidity or flux-rich environments.

Specifications

*Manufacturer: Speedprint Technology*Part Number: SPS2501*Product Type: Board Locating Pin*Diameter: 3 mm*Material: Hardened steel / stainless steel (alloy construction)*Finish: Polished or passivated for corrosion resistance*Compatibility: Speedprint SP series printers and universal SMT tooling systems

More Information

Applications:*PCB alignment and fixturing in Speedprint stencil printers*Electronics manufacturing and SMT assembly lines*Tooling and fixture maintenance for Speedprint SP series equipment*Precision positioning for automotive electronics, consumer electronics, and industrial control boards
