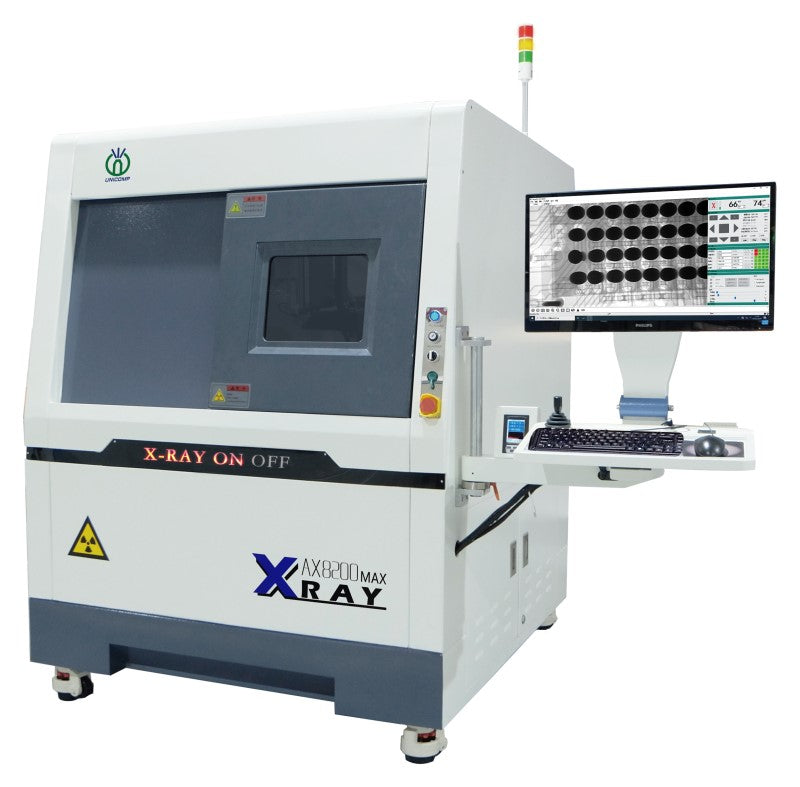

Unicomp AX8200 MAX BGA X-Ray Machine 90 Kv

Unicomp AX8200 MAX BGA X-Ray Machine 90 Kv

SKU UNIAX8200MAX
by Unicomp
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
The Unicomp AX-8200 x-ray machine is designed to provide high resolution x-ray imaging primarily for the electronics industry. This versatile system is effective for many applications within the PCB manufacturing process. This includes BGA, CSP, QFN, Flip Chip, COB and the wide range of SMT components. The AX-8200 is a powerful support tool for process development, process monitoring and refinement of the rework operation. Supported by a powerful and easy to use software interface, the AX-8200 addresses both small and large volume factory requirements. 100kV 5µm X-ray Generator Image enhancer & 2 million digital camera Multi-function carrier platform & X, Y direction± 60° rotation. Convenient target point positioning system BGA Void ratio automatic calculation Max. detection area 385mm*435mm Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables,Aerospace Components, Photovoltaic Industry, etc.
Features & Benefits

Large Size Inspection Table Laser Locator for Precise Location24’’ FHD Interactive Touch LCD DisplayAccurate Control, CNC Programming Automatic PositioningFPD 60° Tilting InspectionFingerprint Access Management SystemReal-time Monitoring of Radiation

Specifications

Footprint 1280(W)×1500(D)×1705(H)mmMachine Weight 1400 kgPower Supply AC 110~220V, 50/60HzPlywood Packing Size 175(W)×155(D)×200(H)cmPacking Weight 1500 kgPower Consumption 1.0 kWX-Ray TubeTube Type SealedMax. Power 8WVoltage 0~90kV (Adjustable)Focus Spot Size 5µmImaging SystemDetector Flat Panel Detector (FPD)Pixel Size 85µmEffective Detection Area 130*130mmFrame Rates 20fpsPixel Matrix 1536*1536System Magnification 600XSoftwareAuto-measuring BGA Soldering Voids Auto-measuring and Support Data/Graphic OutputMultiple Measuring Tools Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.CNC Mode CNC Programmable Inspection, Easy Operation and User FriendlyReal-time Display Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etcNavigation Convenient Target Point Positioning SystemMotion Control SystemMovement Control Joystick, Keypad, Mouse &Touch PanelMax. Loading Area/Weight 610*610mm / 10kgMax. Inspection Area 550*550mmOblique Views Max. 60°Manipulator 6-axis with X / Y / Z1 / Z2 / T1 / T2Industrial PCMonitor 24 inch FHD Interactive Touch LCD DisplaySystem OS Windows 10 64bitHard disk 1TBRAM 8GBCPU model Intel i7 ProcessorOther FeaturesDoor Open Electric SlidingX-Ray Safety <1µSv/h (Meets All International Standards)Authority Management Fingerprint Access Magnagement System, and Support Password Accessing.Safety Operation Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor
