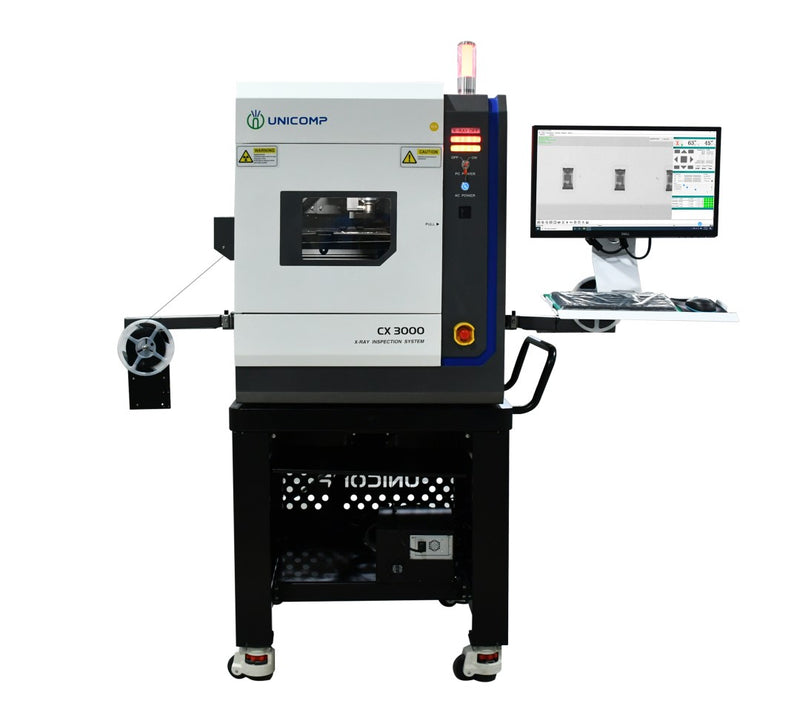

Unicomp Desktop X-Ray Inspection Machine CX3000

Unicomp Desktop X-Ray Inspection Machine CX3000

SKU UNICX3000
by Unicomp
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Desktop X-Ray Inspection Machine This new design desktop X-Ray CX3000 can for both of mode types PCBA inspection (Maximum PCB size 300*300mm) and Reel to Reel checking for components, which can be used for both of SMT soldering quality inspection plus electronics components detection for incoming quality verification in EMS factory, and mostly electronics components trading companies (supply chain) will need this machine too. Image Detector:Type: HD digital flat panel detector Pixel Size: 85µm Pixel Matrix: 1536*1536 Effective Area:130mm×130mm Workstation: Standard Dimension:300mm×300mm Detection Area:280mm×280mm X-Ray Emission: ?1µSv/h HS Code: 9022199090 Package Date: Wooden case package for one set: W205cmXD155cmxH125cm, Total weight: 740kg (include desk)
Features & Benefits

Super Compack and Desk-top designMulti-function X-Ray InspectionDifferent Inspection ModeStatus Light and Emergency ButtonSafety Electromagnetic InterlockPortable with Wheels

Specifications

Operation System: 22" high definition LCD Industrial PC, Win 10, i7 Processor Unicomp Inspection Software (BGA Inspection & Components Checking, with Reel to Reel)X-Ray Machine: Dimensions: 700(L)×870(W)×915(H)mm(excl. desk) Weight: 640 kg (excl. desk) Power Requirements:110~220VAC(±10%) 50/60Hz(±3Hz) Power Consuption(Max):1.0KWX-Ray Tube: Voltage: 90kV Max Power: 8W Focal Spot Size:5µm Tube Type: ClosedImage Detector:Type: HD digital flat panel detector Pixel Size: 85µm Pixel Matrix: 1536*1536 Effective Area:130mm×130mmWorkstation: Standard Dimension:300mm×300mm Detection Area:280mm×280mmX-Ray Emission: 1µSv/hHS Code: 9022199090Package Date: Wooden case package for one set: W205cmXD155cmxH125cm, Total weight: 740kg (include desk)
