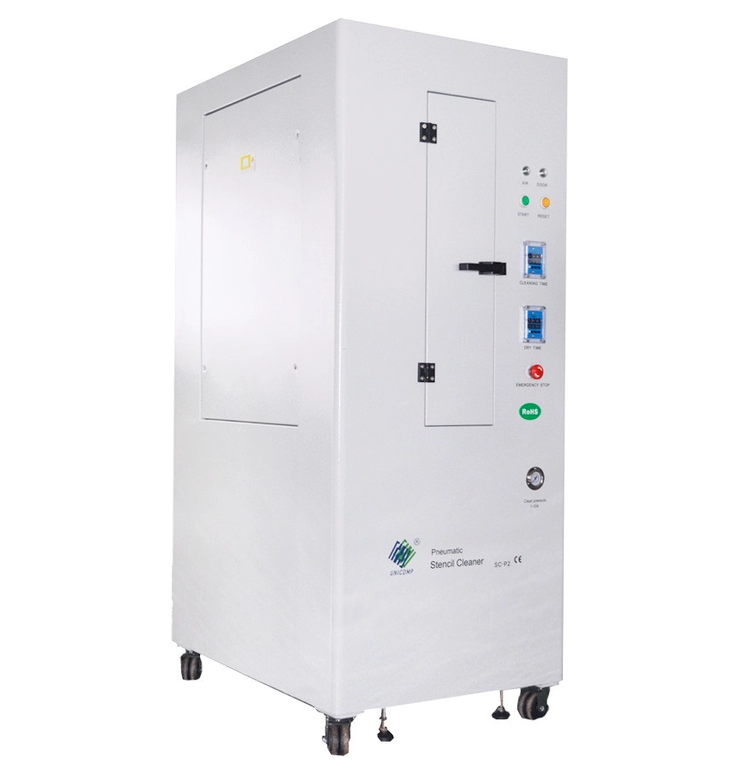

Unicomp Pneumatic Stencil Cleaner

Unicomp Pneumatic Stencil Cleaner

SKU UNISCP2G
by UNICOMP
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Unicmp Pneumatic Stencil Cleaning Machine. Product details: SC-P2 features Completely uses compressed air as energy, no electricity, there is no fire hazard; User-friendly design, one-button operation, easy to complete the cleaning, dry work. High density isobaric bilateral rotary cleaning nozzle, high cleanliness, steel mesh tension and stability; Automatic addition, drainage system, easy to produce flexible management; Three filter system and small tuyere design, cleaning fluid recycling, low loss; Systematic integration of global quality control devices, durable; Replaceable modular controller for easy maintenance. Dimensions 740 ( W)×100 ( L) x 1785 ( H) mm Cleaning method Rotary cleaning fluid injection and high pressure air injection Stencil Size Max.750 ( W)×750 ( L) x 40 ( H) mm(Customized) Liquid Capacity 40L (Max) 20L (Mix) Dry Time 4-6min Compressor Air 0.4-0.6Mpa Outlet size f125x30mm ( H ) Four Levels Filter System First Degree:20µm, second degree: 10µm, Third degree: 5µm, Fourth degree: 1µm #Product Info: Uses compressed air as energy, No electricity, there is no fire hazard; One-button operation, easy to complete the cleaning, dry work; High-density isobaric rotary cleaning nozzle, high cleanliness, steel mesh tension and stability; Replaceable modular controller for easy maintenance. Detailed Product Description Color: Blue And Sliver Name: Pneumatic Stencil Cleaner Application: Solder Paster Liquid Capacity: 40L (Max) 20L (Mix) Stencil Size: Max.750 ( W)×750 ( L) X 40 ( H) Mm Dimensions: 740 ( W)×100 ( L) X 1785 ( H) Mm High Light: stencil cleaning machine, stencil washer, Dry Work Stencil Cleaner SC-P2 Unicomp Stencil Squeegee PCB Fixtures Pneumatic Cleaner
Features & Benefits

Compressed air powered – no electricity, no fire hazardOne-button operation for easy, fully automated cleaningHigh-density isobaric bilateral rotary cleaning nozzle ensures uniform cleaning and high stencil cleanlinessSteel mesh tension and stability maintain stencil integrityAutomatic liquid addition and drainage system for flexible workflow managementFour-level filtration system (20 µm ? 10 µm ? 5 µm ? 1 µm) for low fluid loss and effective recyclingReplaceable modular controller for easy maintenance and durabilityShort drying time of 4–6 minutes for fast turnaroundAccommodates large stencil sizes up to 750 mm × 750 mm × 40 mm

Specifications

Manufacturer: UnicompModel: SC-P2 / UNISCP2GProduct type: Pneumatic stencil cleaning machineDimensions: 740 mm (W) × 100 mm (L) × 1785 mm (H)Stencil cleaning method: Rotary cleaning fluid injection + high-pressure air injectionMaximum stencil size: 750 mm (W) × 750 mm (L) × 40 mm (H) (customizable)Liquid capacity: 40 L (max), 20 L (mix)Drying time: 4–6 minutesCompressed air: 0.4–0.6 MPaOutlet size: Ø125 × 30 mm (H)Filtration system: Four levels – 20 µm, 10 µm, 5 µm, 1 µmColor: Blue and silverEnergy source: Compressed air (no electricity)
