Arm Evac 150, Fume Extractor System, Digital, 240v
Arm Evac 150, Fume Extractor System, Digital, 240v

Arm Evac 150, Fume Extractor System, Digital, 240v

SKU 8889-0155-P1
by Pace
Sold out
$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

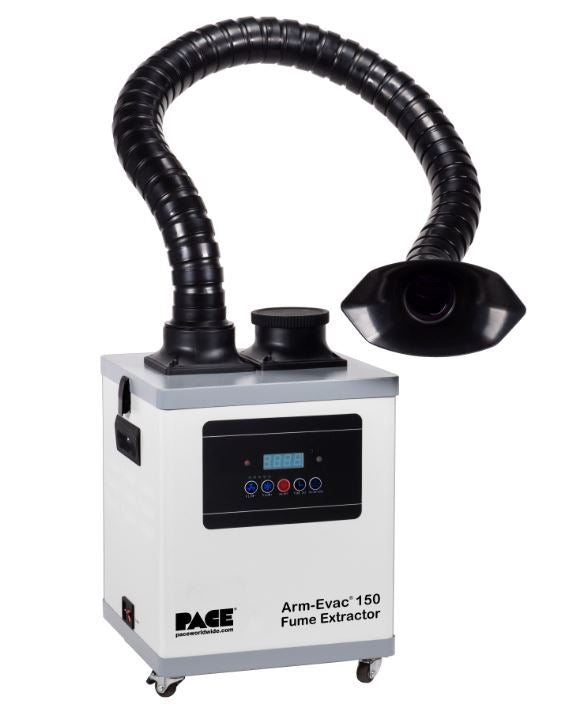

Digital fume extraction system PACE,s Arm-Evac 150 captures hazardous fumes locally and is suitable for benchtop soldering and electronic rework applications including handheld machining operations and light, limited use of solvents, adhesives and other light and medium duty industrial applications. The low-cost Arm-Evac 150 System comes complete with a self-supporting SteadyFlexTM ESD-Safe Arm/Nozzle assembly and 3-stage filtration system ........ everything you need to set up one operator!
Features & Benefits

SteadyFlexTM ESD-Safe Arm/Nozzle Assembly included Low profile, compact unit fits under workbench Fume Extraction for up to 2 operators (additional SteadyFlexTM Arm/Nozzle required) Reliable, brushless motor pump does not require costly routine maintenance Rugged steel case construction Locking casters for easy mobility & portability Superior performance and quiet operation Optimal flow rates for use with our flex arms & accessories Low cost, easily changed, disposable filter cartridges Digital control panel with easy-to-read display Wireless Remote Control included Filter Condition Monitor & Alarm alerts user of blockage or need to change filter 10 air flow speed settings LED Motor Speed Indicator Time Set feature automatically shuts unit off Control Panel Lock prevents unauthorized alteration of settings Total Run Time Counter displays hours machine has been in use Wide variety of filter options to meet virtually any benchtop application

Specifications

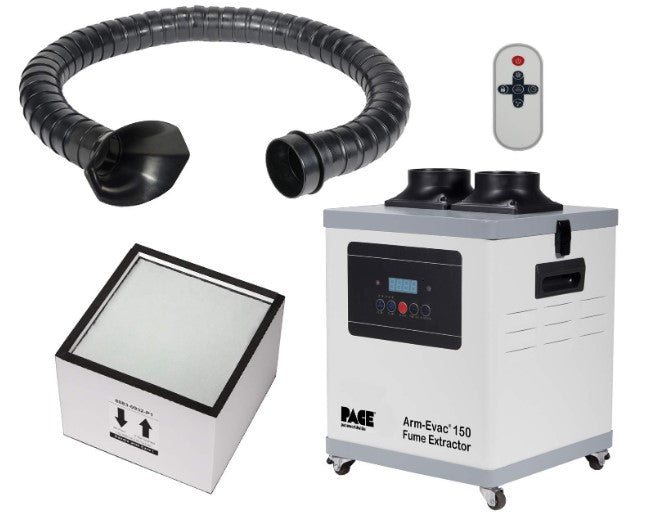

Flow Rate (Gen. Purp. Combo Filter)Single Inlet: 155 CFM || Dual Inlet: 90 CFM each arm Flow Rate (Cleanroom Filter)Single Inlet: 145 CFM || Dual Inlet: 85 CFM each Sound Level DbA< 53 dbA 50% motor speed ||< 63 dbA 100% motor speed Weight (With Filter)9.07 Kg/20lbs Size: 305mm W x 305mm D x 432mmH (12" W x 12" D x 17" H) Housing20-gauge steel (ESD safe) Flex Arm Diameter: 60mm (2.4") Diameter Length: 132cm (52") Length Maximum Number of Flex Arms2#Content1 x Arm-Evac® 150 System 1 x Inlet Cap1 x SteadyFlex ESD-Safe Arm/ Nozzle Assembly1 x Pre filter and HEPA Combo Filter 8883-0922-P11 x Wireless Remote1 x Power cord
