DDDWeller WX2 Soldering Station 200W - Power unit only

SKU WELWX2AU
Sold out
Original price $0.00 - Original price $0.00
Original price $0.00
$0.00
$0.00 - $0.00
Current price $0.00

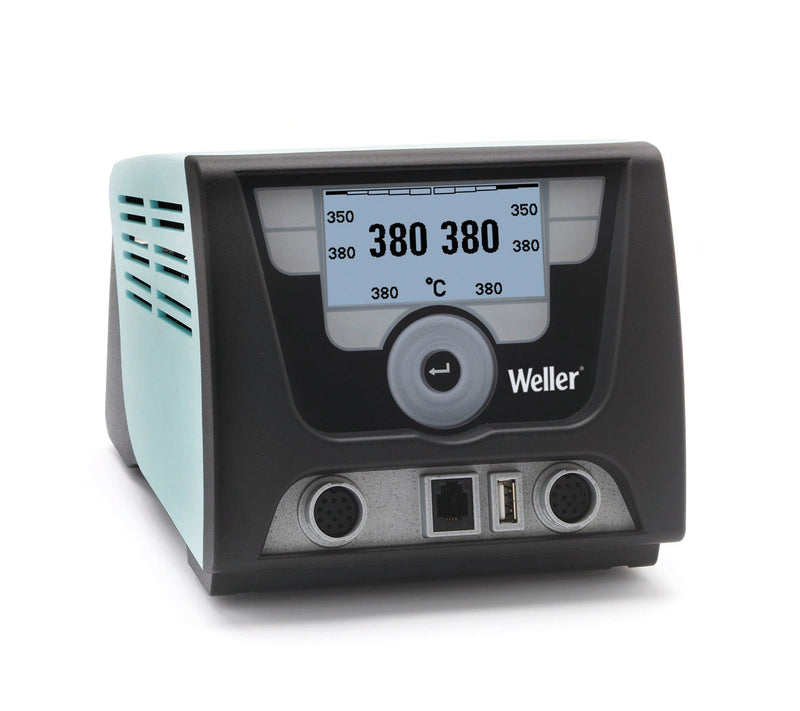

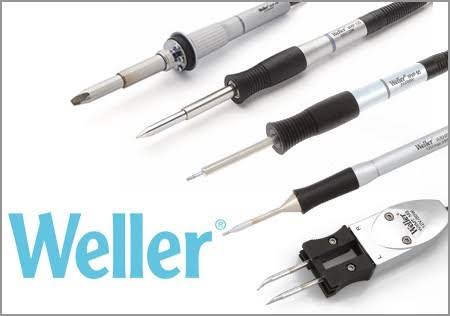

Weller soldering station WX 2, STATION ONLY Contains: 1 x WX2 power unit The Weller WX2 is a 200W dual channel soldering station. It is compatible with all Weller WX series soldering handpieces. 240V version with AU/NZ plug. Capacitive glass touch screen is chemical and temperature resistant Turn and click wheel with enter key and finger guide is intuitive to use Large graphic LCD display can be viewed from all angles Acts as a benchtop controller for the WHP1000 / WHP3000 hot plates and Zero Smog 4V / 6V Filtration units Multi-purpose USB port for parameter configuration and DATA LOGGING Multi-language menu, ready for automation using RS232 Serial I/O commands Dimensions (L x W x H): 174 x 154 x 135 mm Temperature range (depends on tool): 100 - 550 °C Temperature accuracy: +/- 9 °C Temperature stability: +/- 2 °C #Demonstration Video https://www.youtube.com/watch?v=xM0wdOvNHzk
Features & Benefits

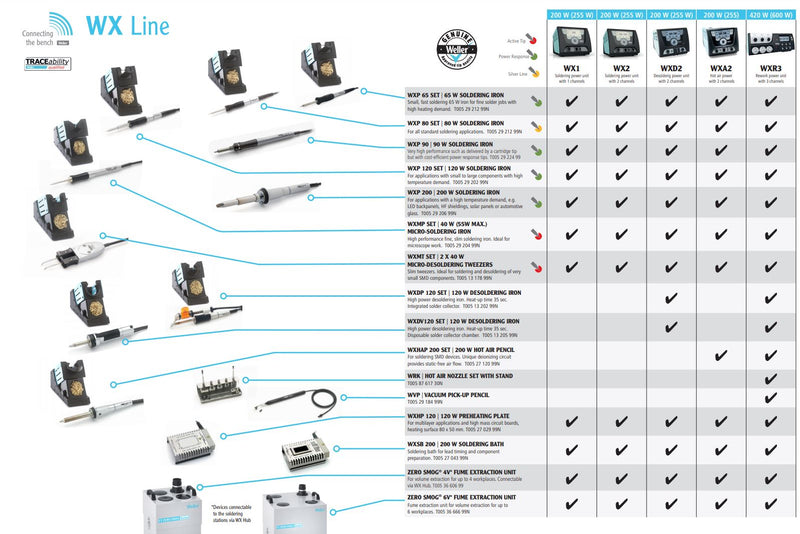

Dual-channel 200 W WX2 power unit (station only)Capacitive glass touch screen and large graphic LCD displayTurn-and-click control wheel for intuitive operationUSB port for data logging and configurationMulti-language menu, automation-ready via RS232Compatible with all WX series handpieces and accessories

Specifications

Voltage: 240V AC (AU/NZ plug)Channels: 2Temperature range (tool dependent): 100–550°CTemperature accuracy: ±9°CTemperature stability: ±2°CDimensions (L × W × H): 174 × 154 × 135 mm
