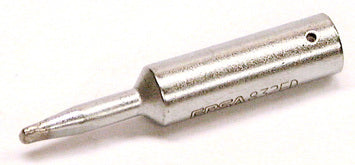

Ersa Solder Iron Tip, 0832ED/EDLF, Chisel,3.2mm

Ersa Solder Iron Tip, 0832ED/EDLF, Chisel,3.2mm

SKU ERS0832ED
by Ersa
$0.00 - $0.00
$0.00
$26.24
$26.24 - $26.24
$26.24
Ersa Solder Iron Tips, 0832ED/EDLF, Chisel- Shaped, 3.2mm Long-life soldering tip with ERSADUR LF coating for the following soldering stations: ANALOG 60 (0ANA60), ANALOG 60 A (0ANA60A), ANALOG 80 (0ANA80), ANALOG 80 A (0ANA80A), DIGITAL 80 A (0DIG80A), DIGITAL 2000 A version with Power tool soldering iron (0DIG20A84), Multi-Pro (0930CD), Multi-Sprint (0960ED), Multi-TC (0760CD), RDS 80 (0RDS80), MICRO-CON 60 IA (0MIC60IA) with Power tool soldering iron (0840CDJ), TWIN 80 A (0TW80A) with Ergo tool soldering iron (0680CDJ), ELS 8000 (0ELS80000C, 0ELS8000MC, 0ELS8000DC), and for the following soldering stations that are out of stock: MS 6000 (0MS6000), MS 8000 (0MS8000), and MS 8000 D (0MS8000D). Coating long-life tip Shape of soldering tip: chisel-shaped Soldering tip diameter / width (mm) 3,20 Interior diameter of the shaft (mm): 6,6 Exterior diameter of the shaft (mm): 8,5 Total length (mm) 46,00 Weight (g) 0,012

Stock available: 1

Features & Benefits

• Chisel-Shaped Tip (3.2mm): Ideal for general-purpose soldering and larger pad coverage.• ERSADUR LF Coating: Enhances tip durability and lifespan, especially for lead-free soldering.• Efficient Heat Transfer: Copper base ensures consistent temperature at the tip.• Long-Life Performance: Resistant to wear and aggressive soldering conditions.• Wide Compatibility: Works with multiple Ersa soldering stations and tools.

Specifications

• Manufacturer: Ersa• Part Code: ERS0832ED• Type: Chisel Soldering Tip• Tip Diameter/Width: 3.2mm• Shaft Dimensions: 6.6mm inner diameter, 8.5mm outer diameter• Overall Length: 46mm• Weight: 12g• Coating: ERSADUR LF long-life• Compatible Stations: ANALOG 60/80, DIGITAL 80/2000 A, Multi-Pro, Multi-Sprint, Multi-TC, RDS 80, MICRO-CON 60 IA, TWIN 80 A, ELS 8000 series, MS 6000/8000 (some out of stock)
